Auto-Assigning Chats in Chakra Chat

This guide explains how to set up automatic chat assignment in Chakra Chat to streamline chat allocation to available users. Follow these steps to create a Chat Inbox, add an allocator, map the inbox, and configure user roles.

Quick overview of how the autamated chat allocation works using the Chat Inbox, Allocator for mulitple connected WhatApp Numbers.

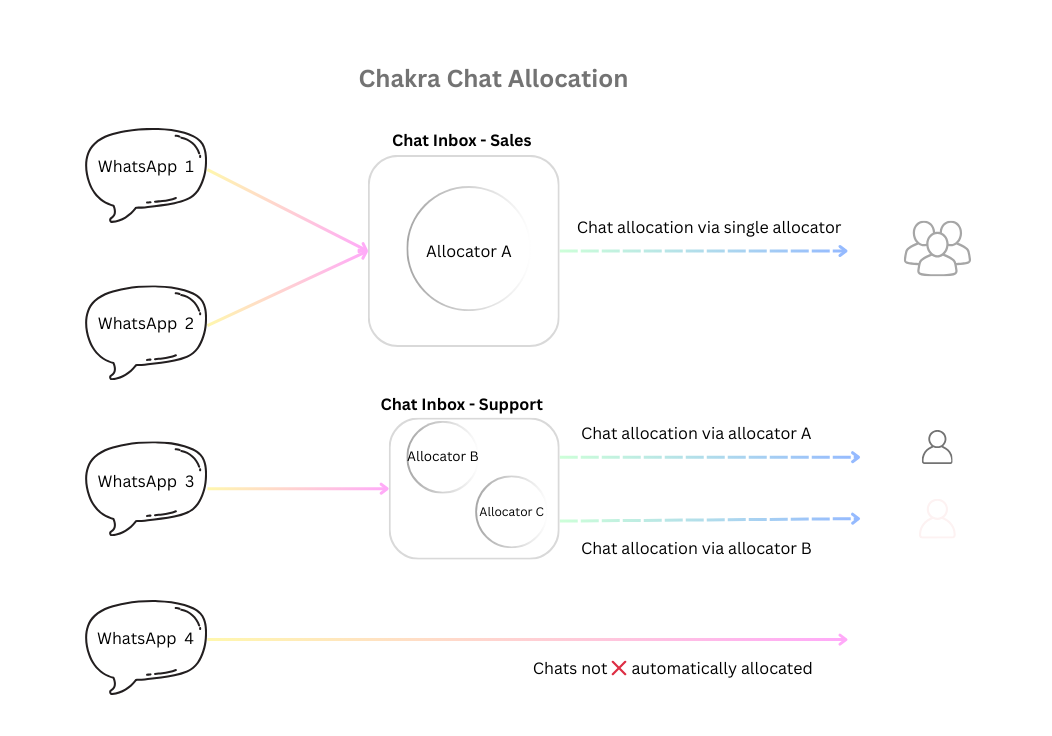

Automated Chat Allocation Flow in Chakra

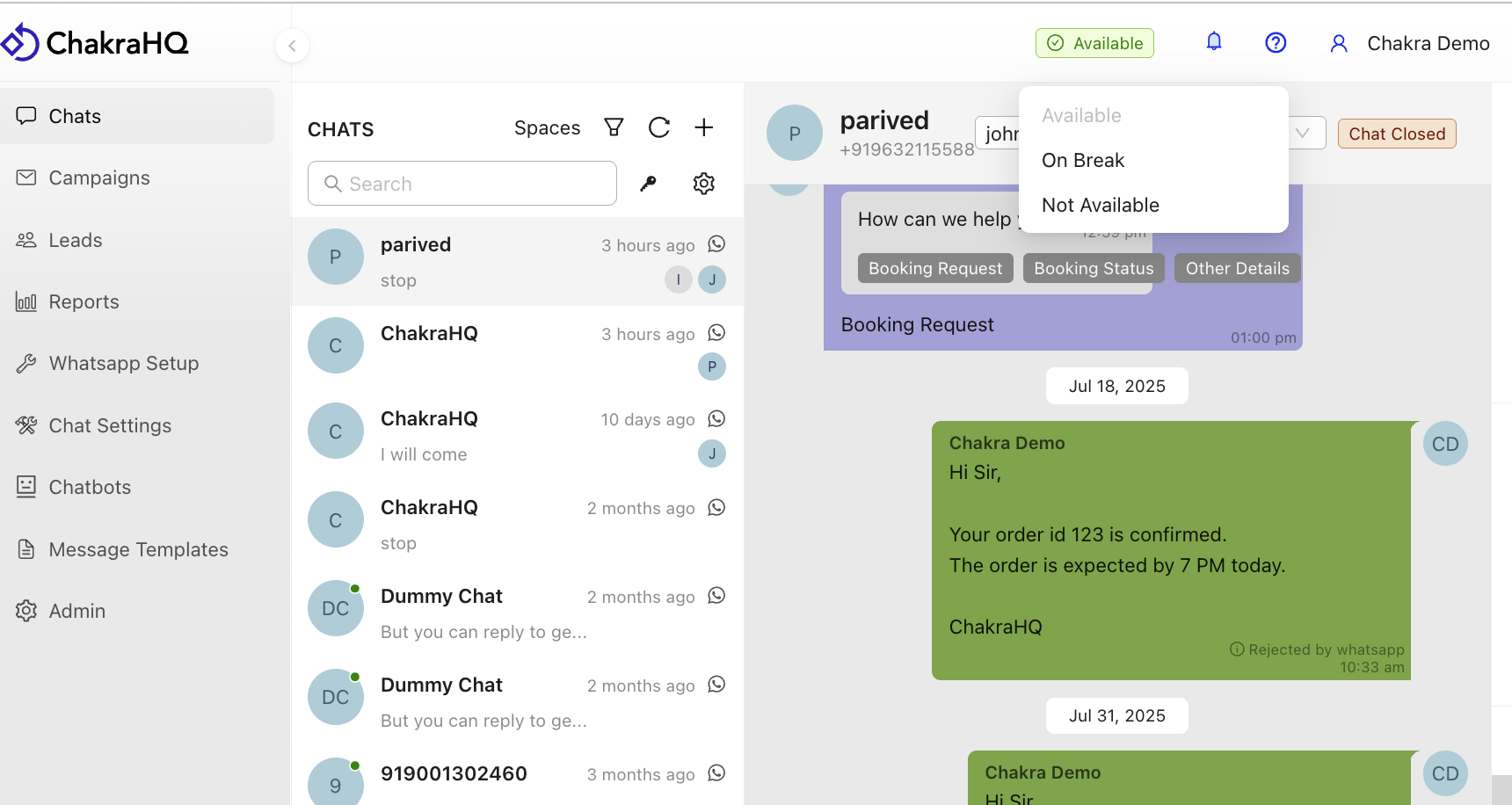

Note: Chats are assigned only to users marked as AVAILABLE.

Chats available to Status = AVAILABLE users

Chat Visibility by User Role

By default, chat visibility is governed by user role type:

  • Admins 💼: Access all chats.
  • Managers 👨🏻‍💻: Access all chats.
  • Users 🙋: Access only chats assigned to them.

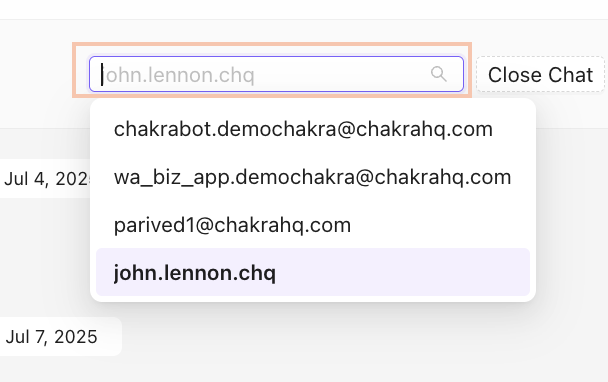

Chats can be manually assigned from the chat section using the Select Assignee dropdown at the top of the chat window.

Manual assignment of Chats

Tip: For high-volume scenarios, manual assignment can be tedious. Use auto-allocation to save time!

Step 1: Create a Chat Inbox

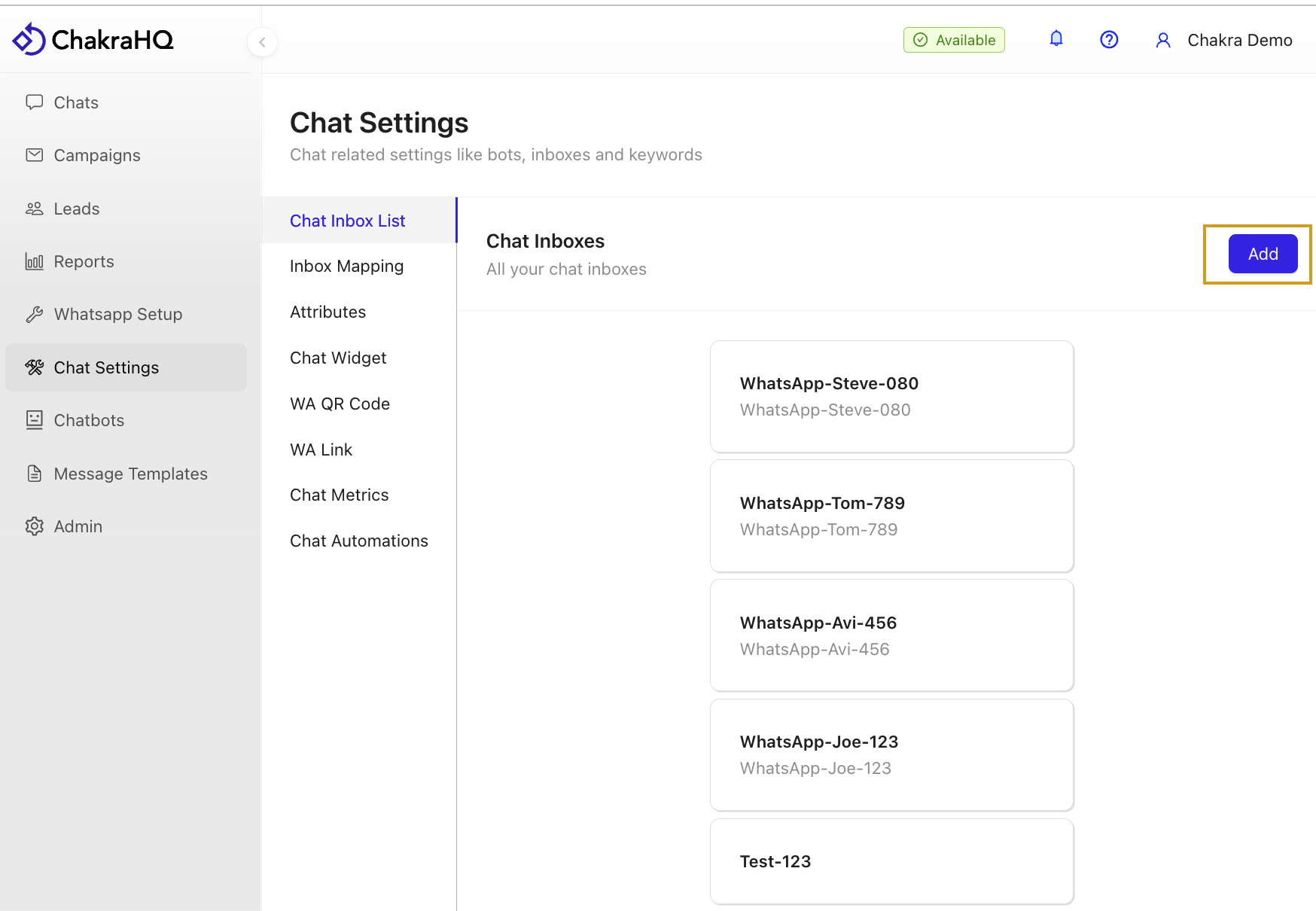

  • Navigate to Chat Settings > Chat Inbox List.
  • Click Add to create a new chat inbox.
Create Chat Inbox

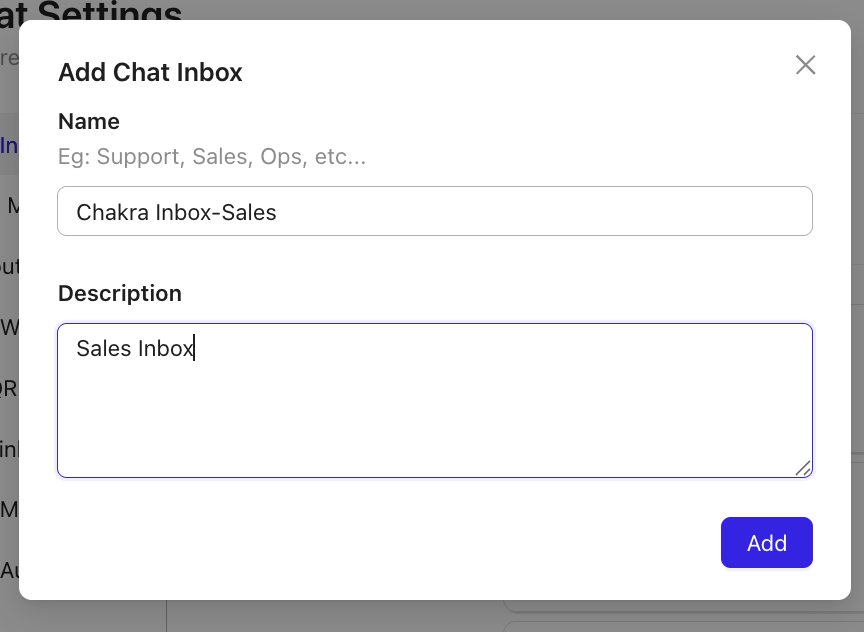

  • In the Add Chat Inbox pop-up:
    1. Enter a Name for the chatbot.
    2. Add a Description (optional).
  • Click Add to create the inbox.
Configure Chat Inbox

Step 2: Add an Allocator to the Chat Inbox

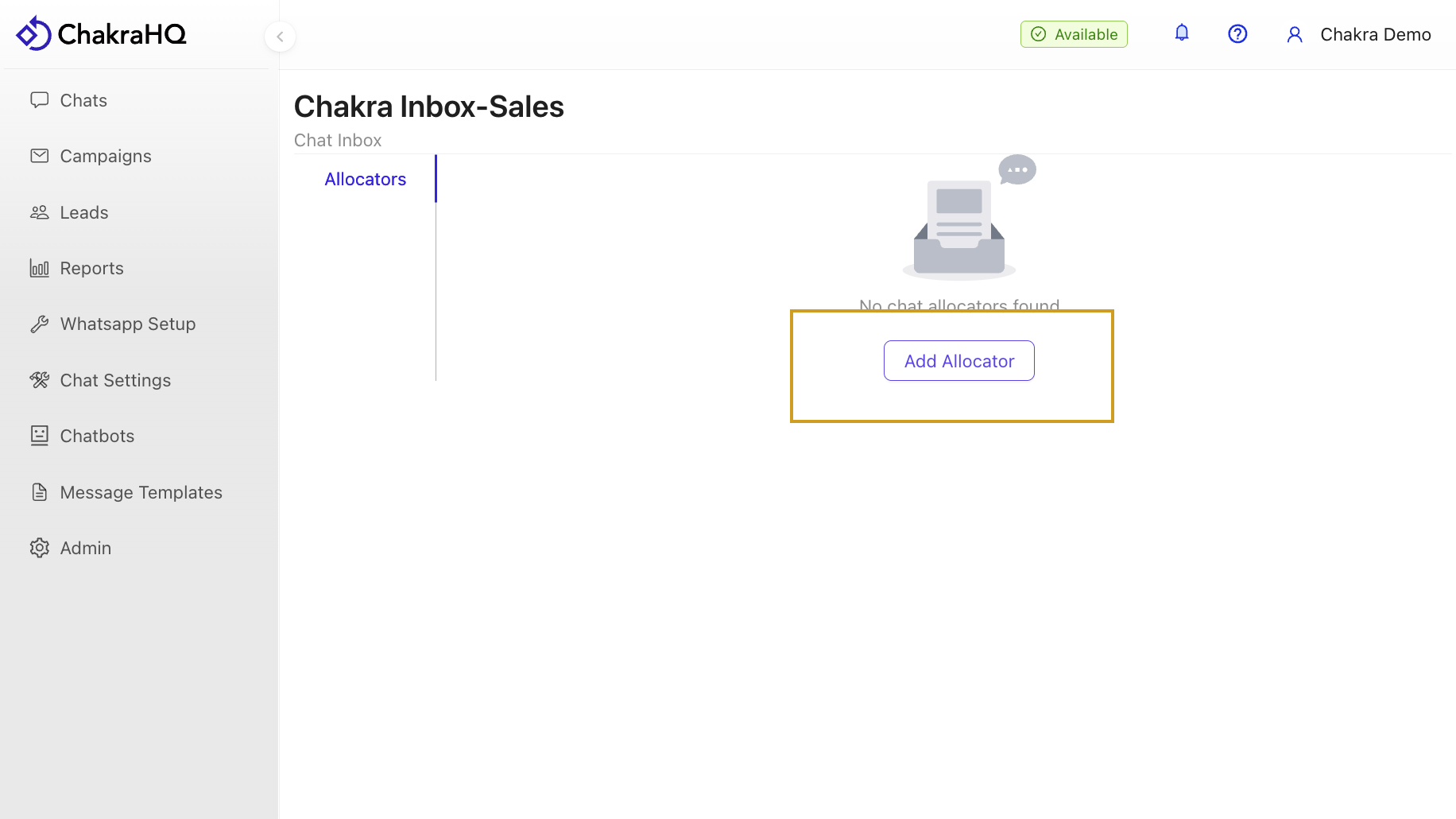

  • Open the newly created Chat Inbox.
  • Click Add Allocator.
Add Chat Allocator

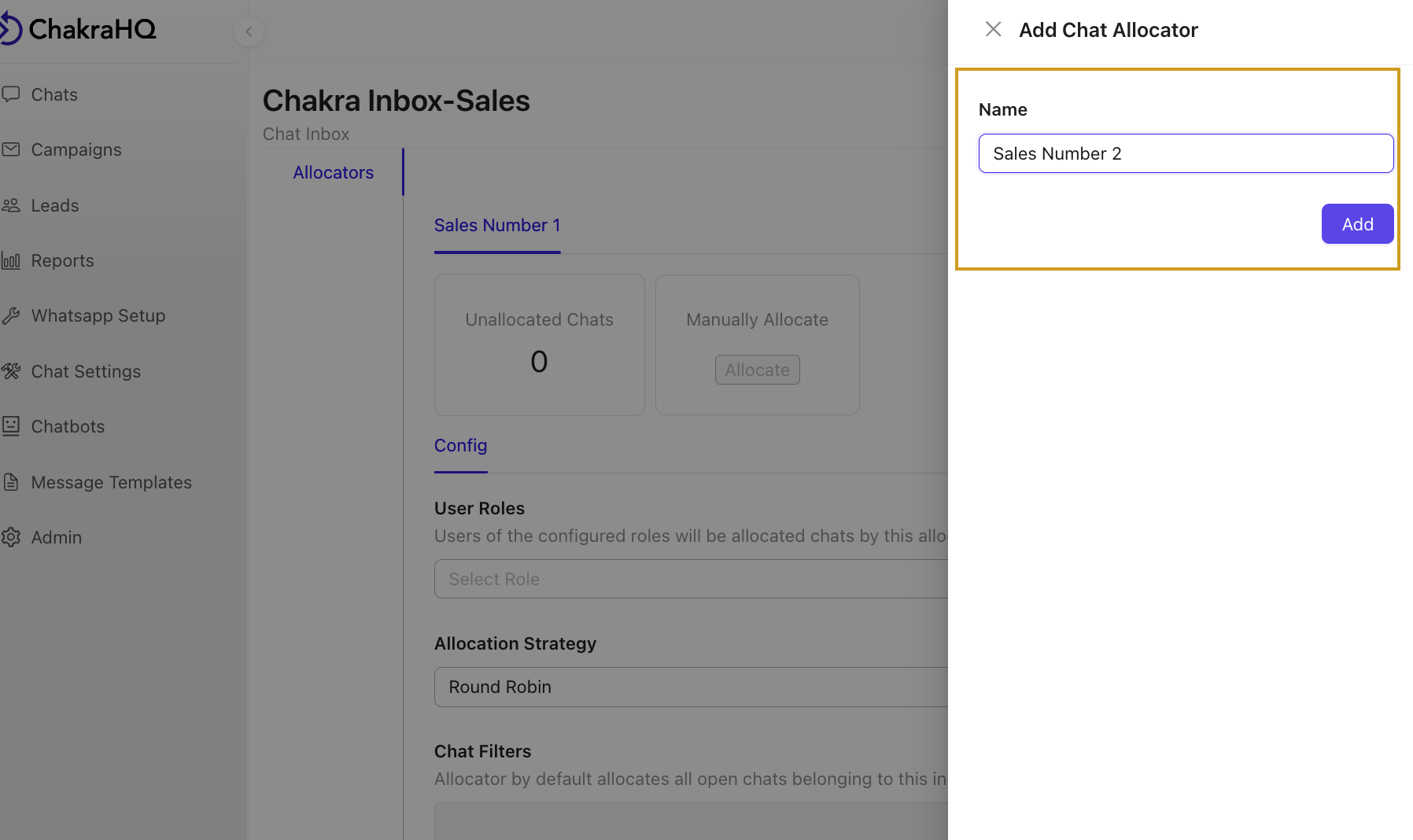

  • In the pop-up:
    1. Enter a Name for the allocator.
    2. Click Add.
Configure Chat Allocator

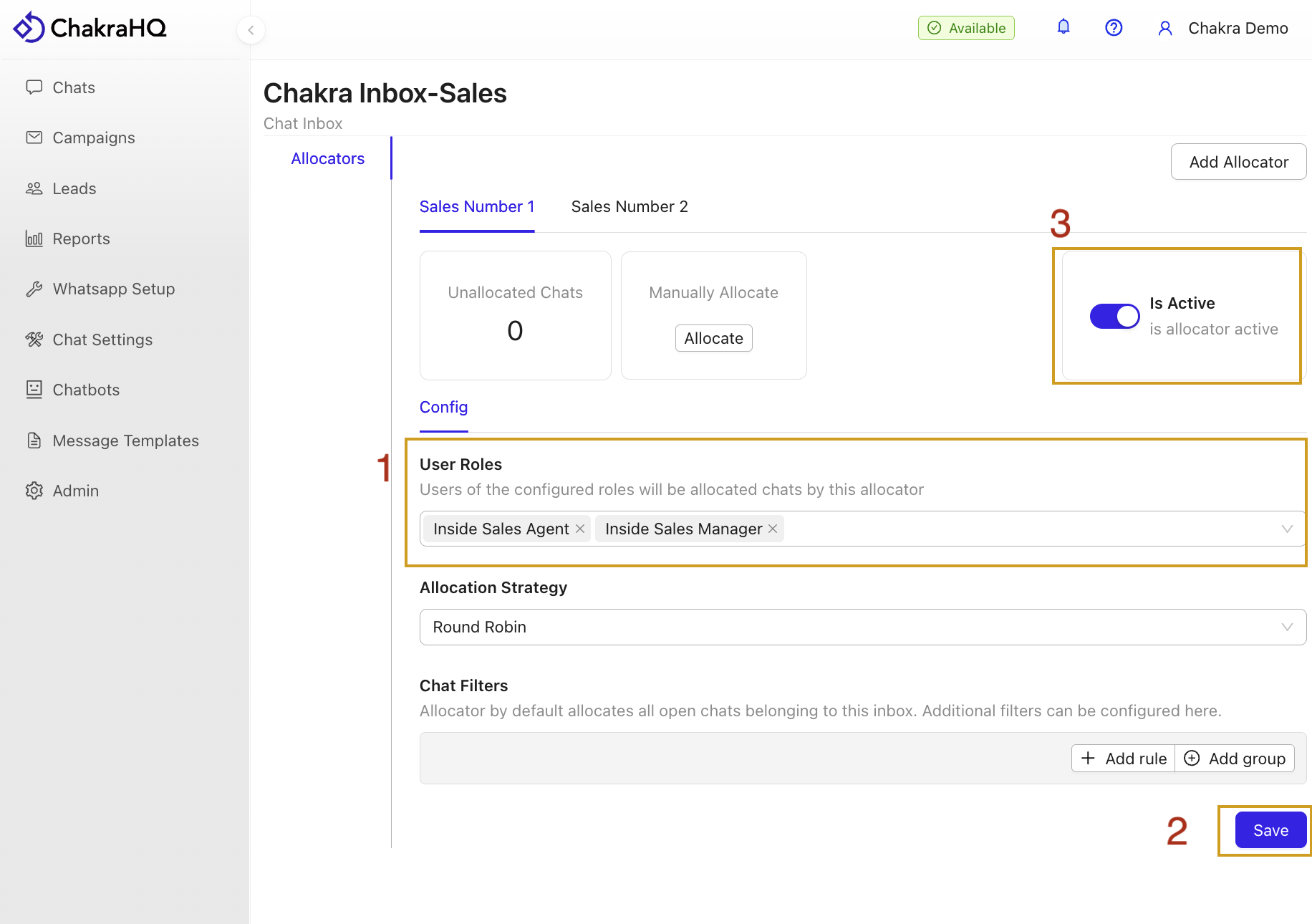

  • Go to User Roles and select the roles (multi-select) to allocate chats in this inbox.
  • The allocation strategy defaults to Round Robin.
  • Click Save and toggle Allocator Is Active to enable it.
Create Chat Inbox Mapping

Advanced Feature: Chat Filters
To selectively allocate chats, use Chat Filters to define eligible chats for automated allocation. For issues, raise a ticket with the Chakra team.

Step 3: Map the Chat Inbox

Map incoming chats to the appropriate Chat Inbox:

  • Go to Chat Inbox List.

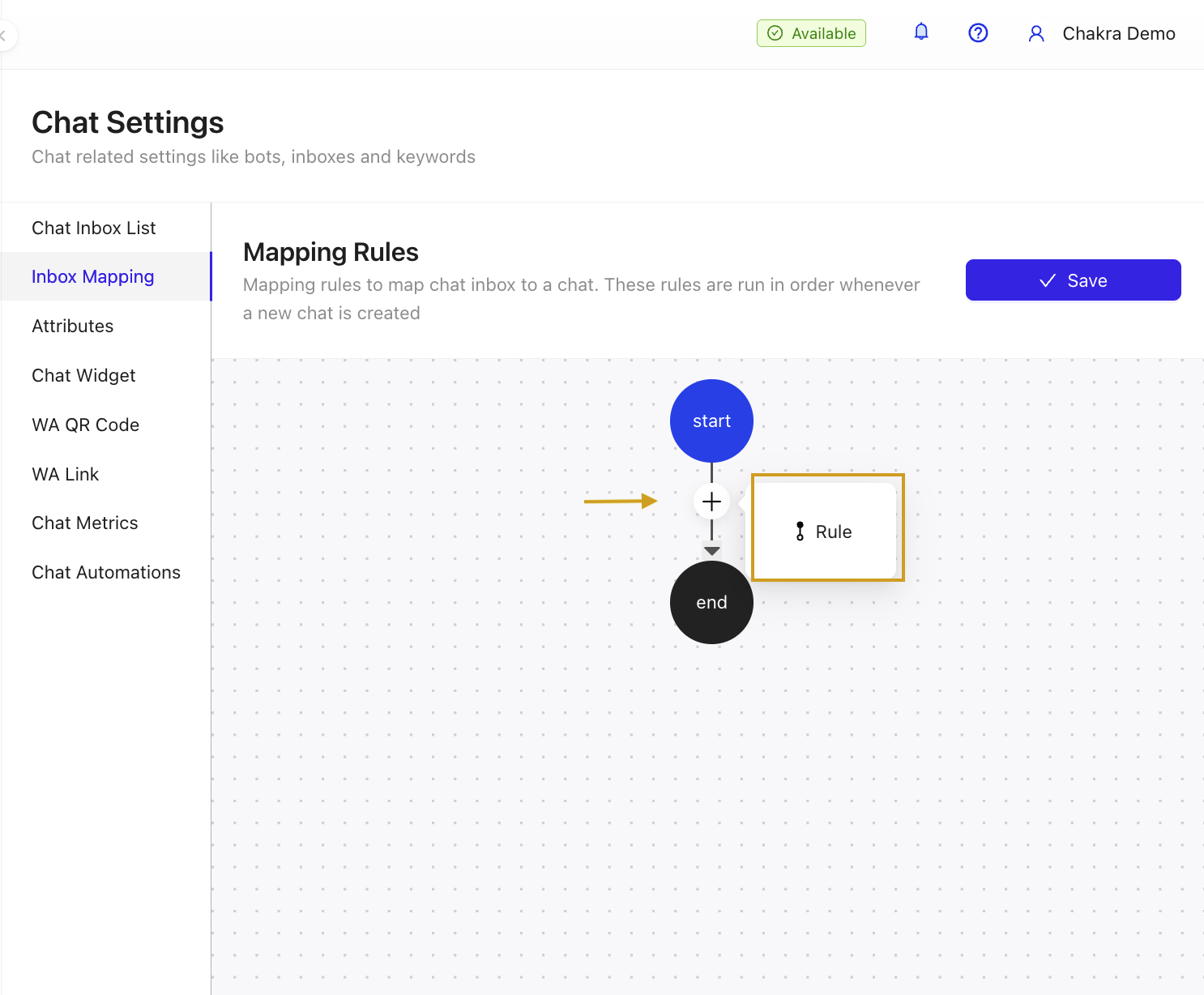

  • Click the icon below the START block.
Create Chat Inbox Mapping
  • In the Rule pop-up:
    1. Select the relevant Chat Inbox.
    2. Add a Condition to route chats to this inbox (e.g., map a specific WhatsApp number or handle ID).
  • Click Save in the condition drawer.
  • Click Save in the Chat Inbox mapping section.

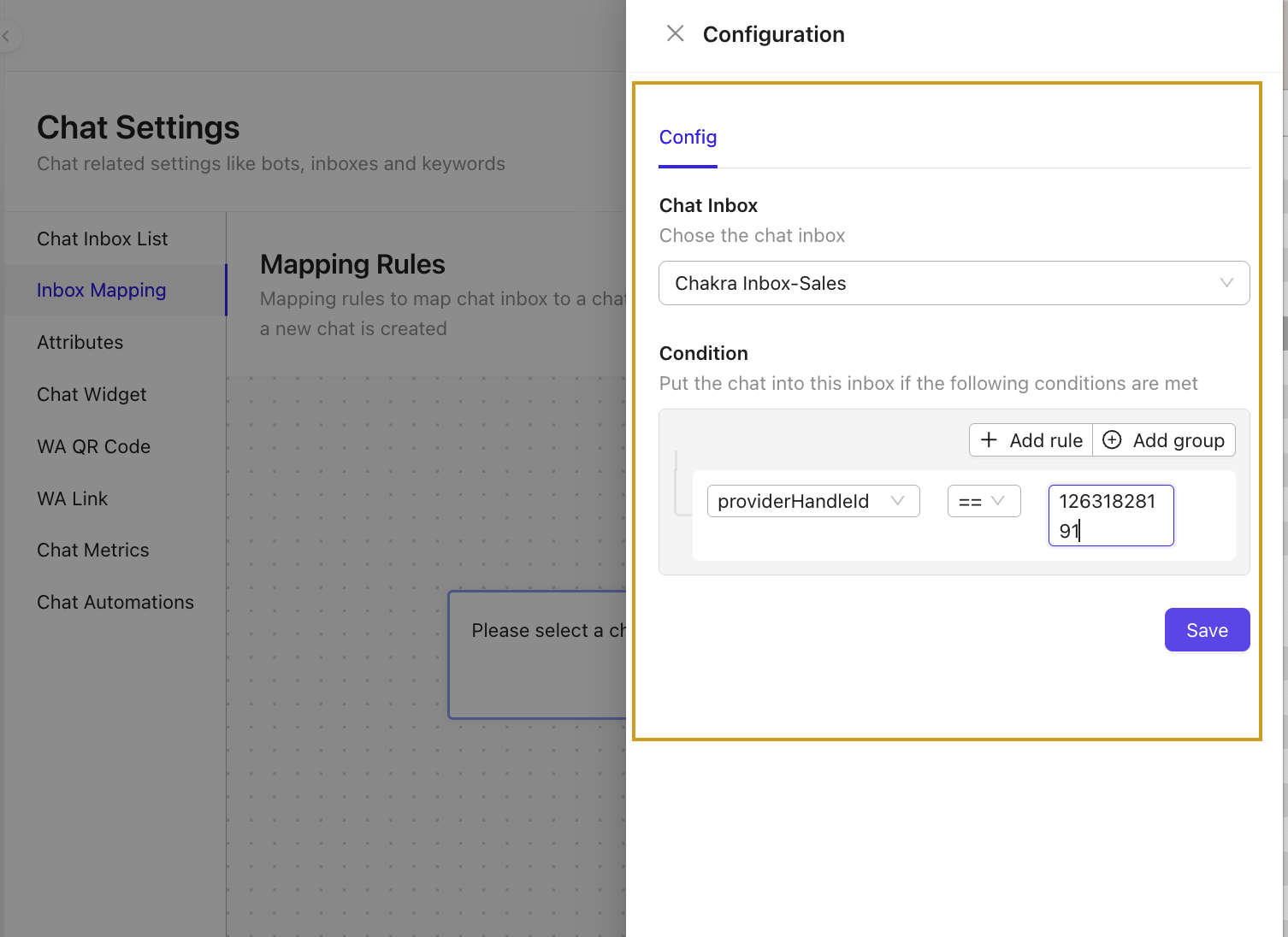

Configure Chat Inbox Mapping

Step 4: Verify User Roles

Ensure users are correctly mapped to roles for chat allocation:

  • Navigate to Users Settings.
  • Check users and their assigned roles.

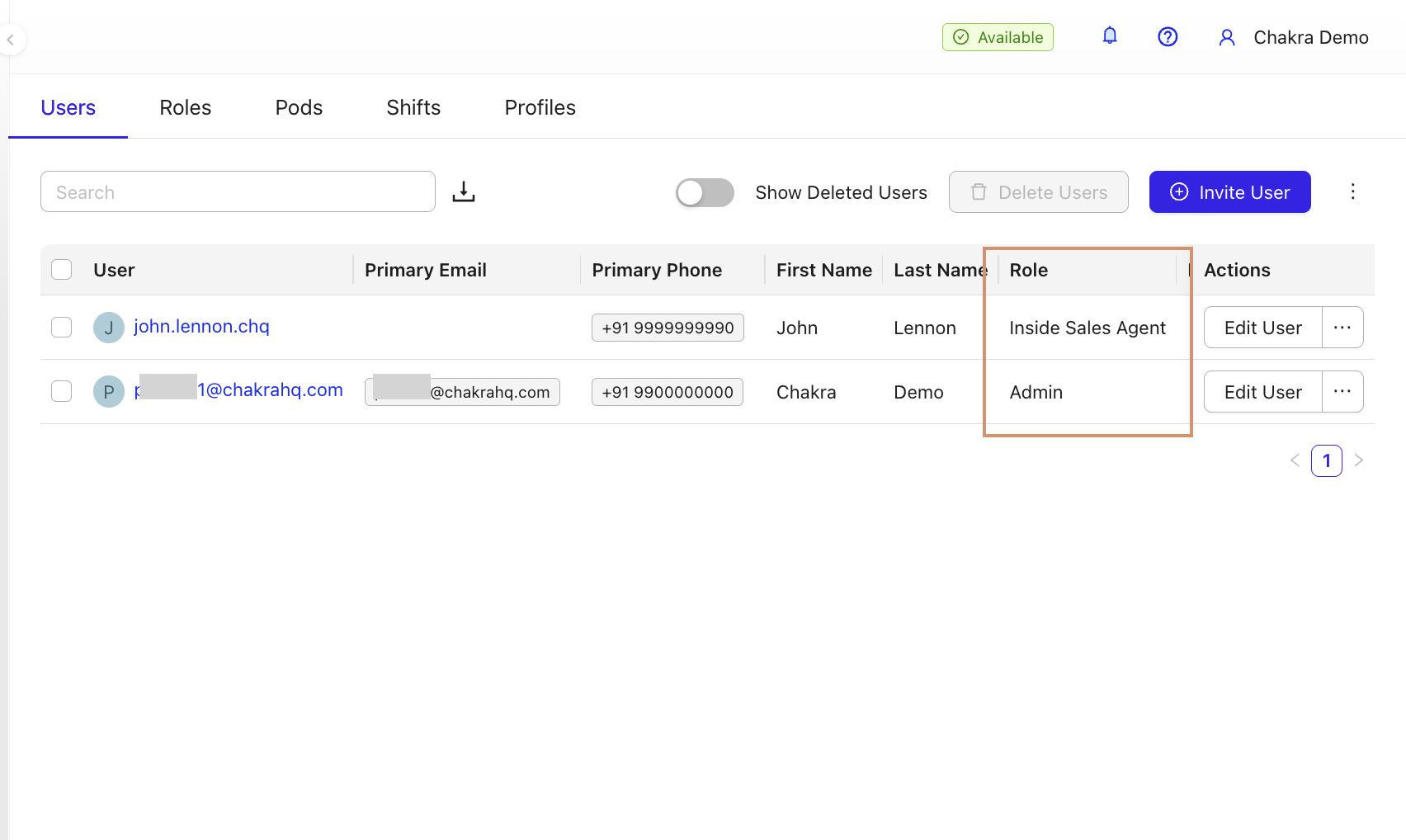

Check User Roles

To Add a New Role

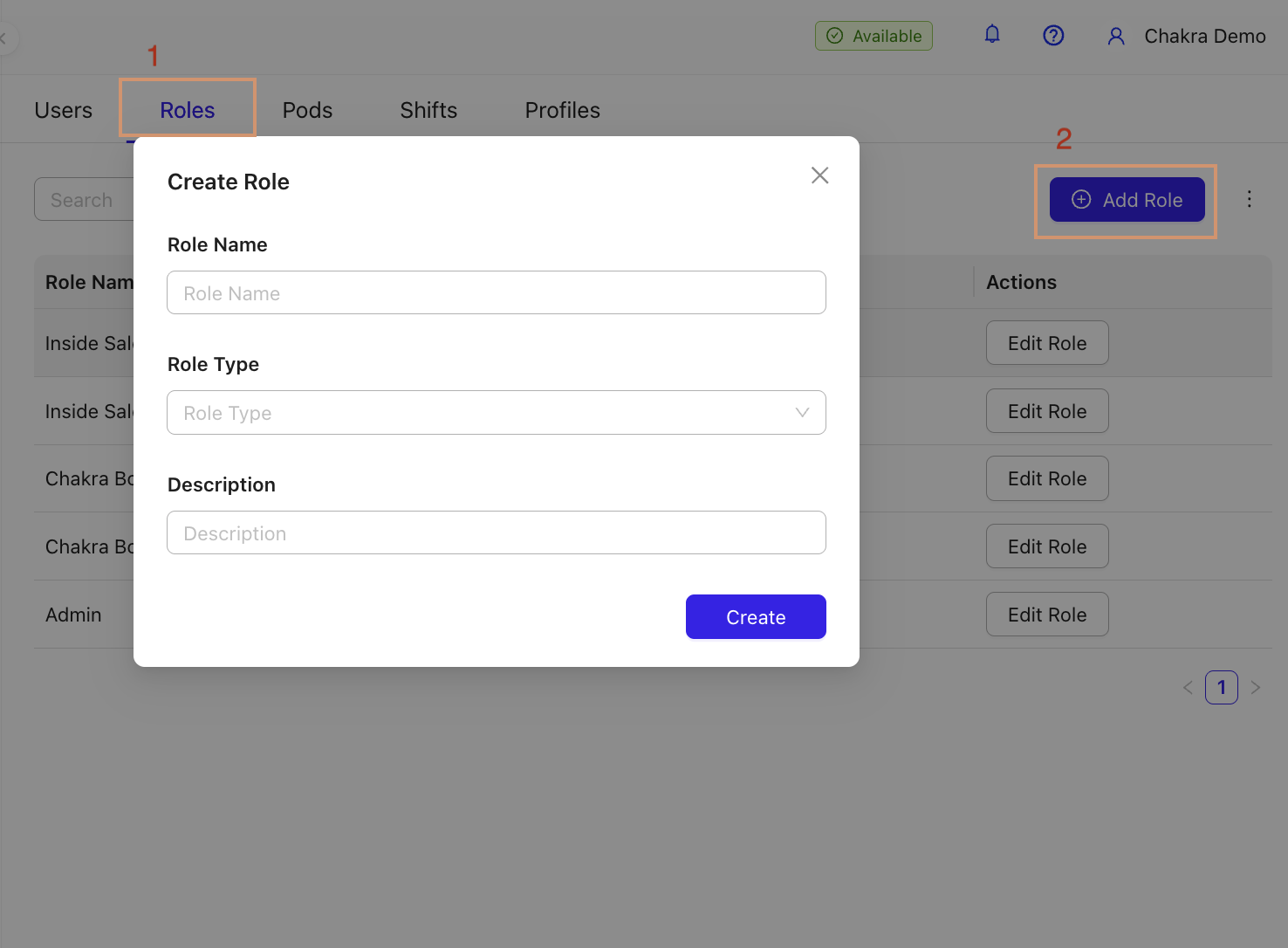

  • Go to the Roles tab.
  • Click ⊕ Add Role.
Add User Roles
  • Enter role details (Name, Type, Description).
  • Click Save.

To Change a User’s Role

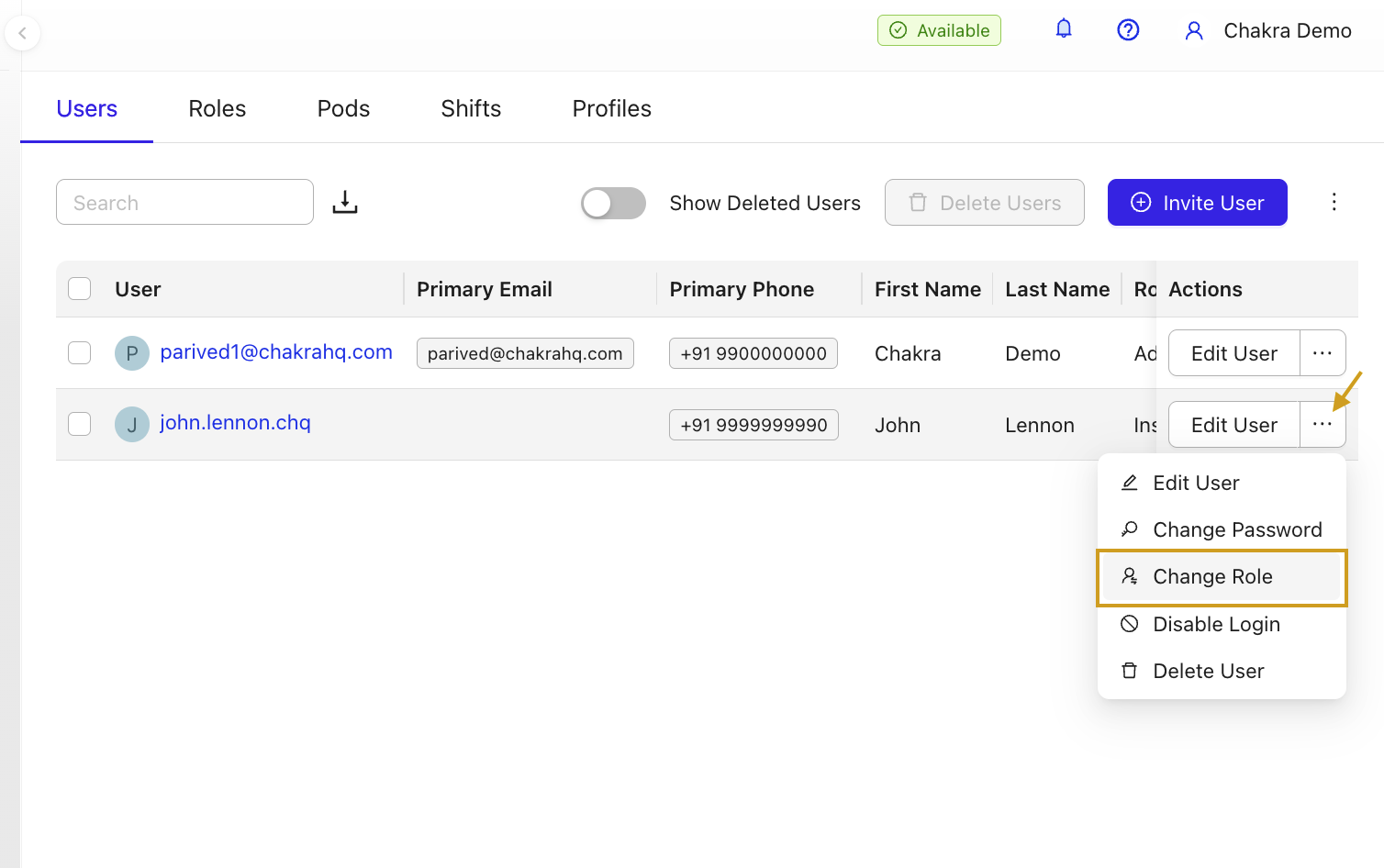

  • In Users Settings, click the next to the user’s Edit Role option.
Change User Roles

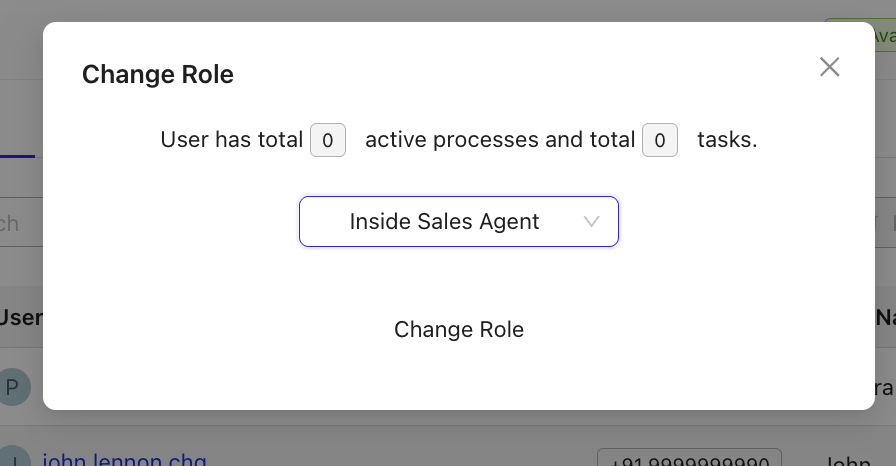

  • Select Change Role, choose the new role in the pop-up, and click Change Role.
Change User Role Details

Final Notes

Ensure the following for successful auto-allocation:

  • Users are mapped to an appropriate Role.
  • The Role has the correct Role Type.
  • The Chat Allocator in the inbox includes the relevant roles for chat allocation.

Your incoming chats should now be automatically assigned to the configured users.

For further assistance, raise a ticket.
