Lead Setup Configuration

Overview:

Use the lead setup configuration settings to setup and modify and tailor your lead pipeline process as per your business needs. The following setup modules with basic overview of the module configuration and how to manage the configuration of each

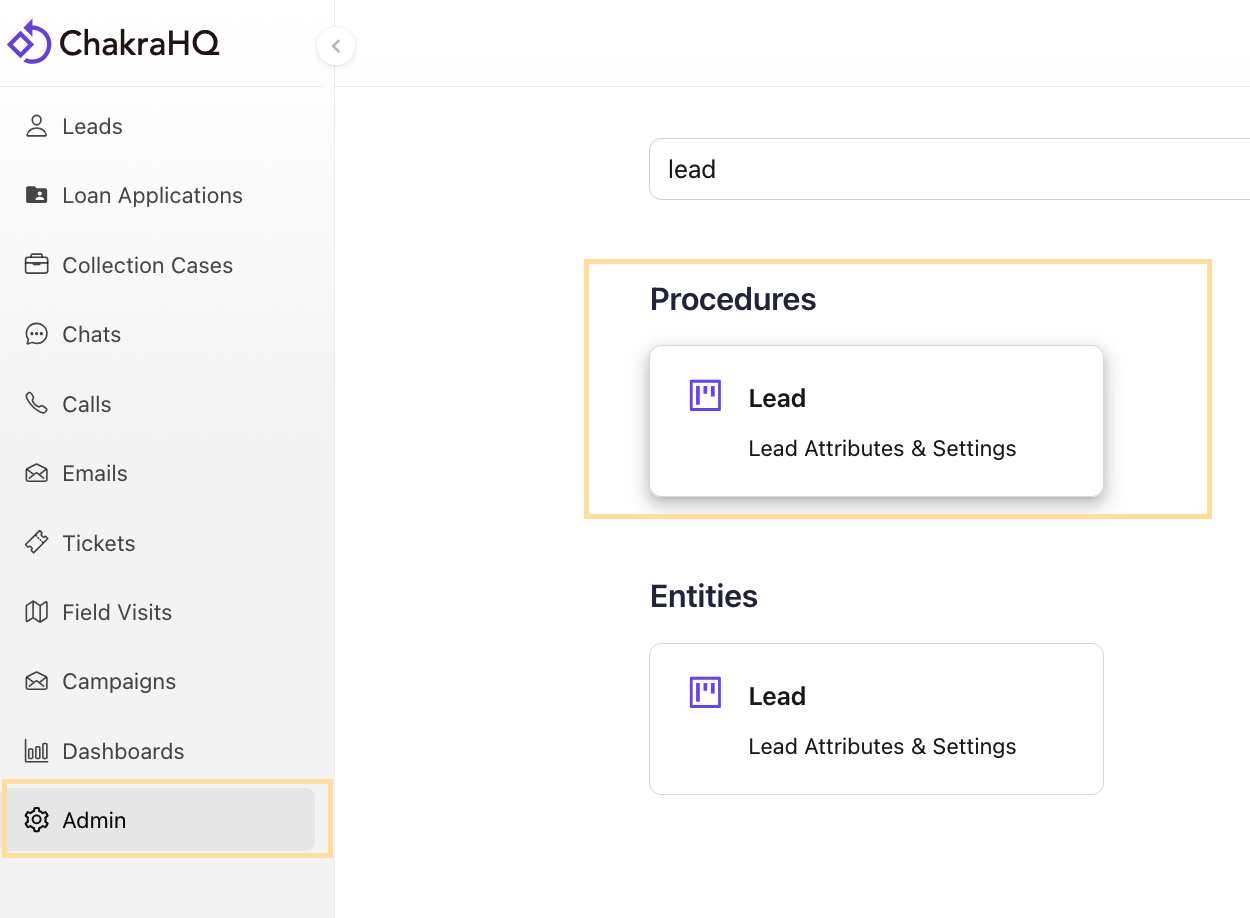

Access Lead Configuration

• Go to Admin in the left-side navigation bar
• Search for Lead in the Admin section
• Click on the Lead in the Procedure sub-section

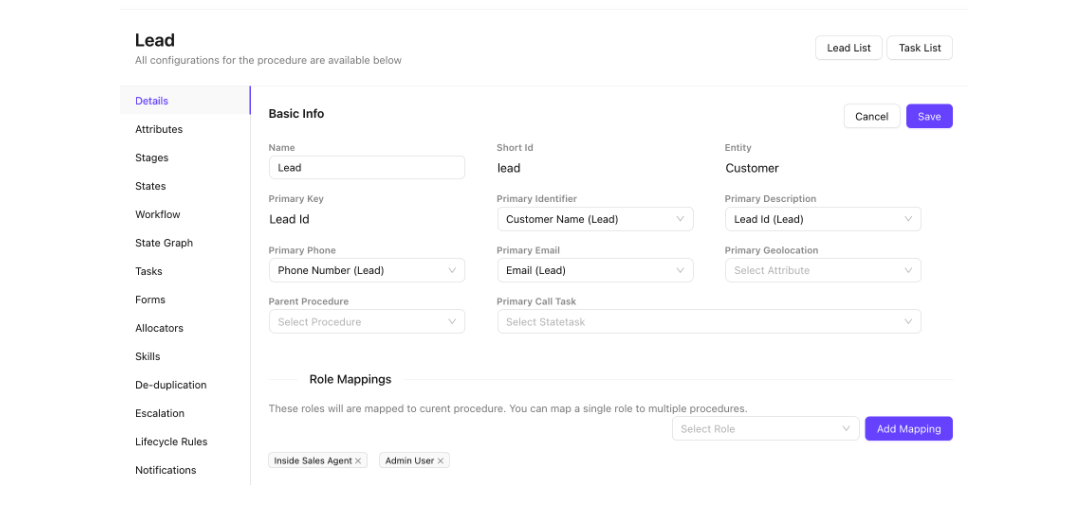

1. Details

The Details section is the starting point for configuring your lead process. It defines how leads are identified, structured, and accessed across your organization.

Key configurations include:

• Primary Lead Key – the unique identifier used to distinguish one lead record from another.
• Primary Phone Number / Email Field – designates which contact fields are treated as the primary point of reach.
• Key Identifier Field – controls which field is displayed as the lead's label across list views and reports.
• Role Access Mapping – define which roles in your organization can have access to the leads process to manage leads within the Chakra Sales CRM.

2. Attributes

Attributes define the custom data fields associated with a lead record. These are the properties that capture relevant information about a lead beyond the default system fields.

• Create and manage custom fields such as text, dropdowns, dates, checkboxes, and numeric inputs.
• Mark attributes as required, optional, or hidden based on your data capture needs.
• Control which attributes appear on lead forms, list views, and detail pages.
• Use attributes to drive segmentation, filtering, and reporting across your pipeline.

Standard vs Derived Attribute:

Standard attributes are data fields that are directly entered or captured from a source - exactly as provided, with no calculation or transformation. They represent raw facts about a lead.

Examples: First Name, Email Address, Phone Number, Company Name, Lead Source, Date Created

Derived attributes are fields that are automatically calculated or inferred based on other data points. They don't exist on their own - they're generated from standard attributes or system logic.

Examples: Lead Score (calculated from engagement + firmographics), Time in Stage (calculated from timestamps), Lead Age (today's date minus created date), MQL Status (derived from score threshold)

Create Lead Attribute

• Click on ➕ Add Lead
• Choose type of attribute from Standard or Derived
• For Standard Attribute, add the following details in the attribute creation form
• • Attribute Name
  • [optional] Required Toggle (Yes/No). No by default
  • Short Id: a unique identified in lead records.
  • Attribute Type: String, text, date, integer, float, document, etc. To understand all the lead attribute types please check this lead attribute type guide
  • [optional] Indexed Toggle (Yes/No). No by default (indexing is primarily done to significantly improve search performance and data retrieval speeds.)

Manage Lead Attributes List

• Access lead attributes in a list in the Lead Attribute Settings
• Search Attribute by the name or short_id in the Search Bar
• Filter Attribute by All Attributes, Standard Attributes or Derived Attribute filter

Manage Attribute Configuration

• Click on the Attribute name in the Name column
• Access the Attribute details in the configuration page
• • Attribute Name (editable)
  • Attribute short_id (editable)
  • Id (unique system identifier)
  • Indexed toggle (Yes/No)
  • Attribute Type (Editable for some)
  • Other attribute field settings as per the attribute type

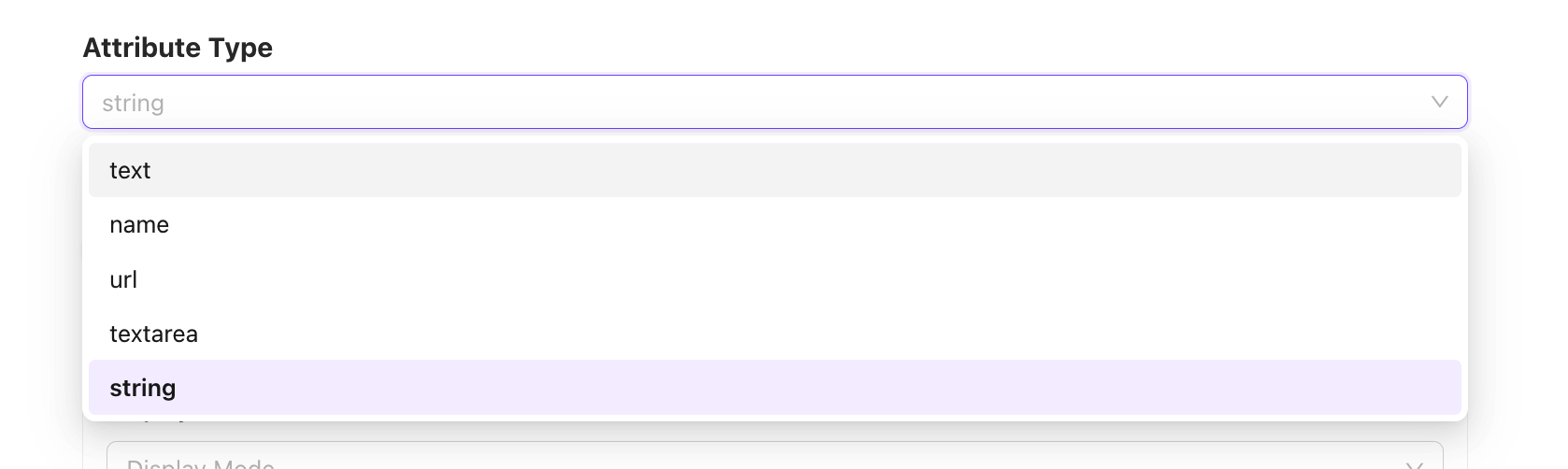

• Some attribute type can be changed after creation (text, name, url, textarea, string)

3. Stages

Stages allow you to group multiple Lead States into broader cohorts, making it easier to manage and report on sales pipelines that have a high number of granular states.

• Create named stages (e.g., Prospecting, Nurturing, Closing) and assign relevant lead states to each.
• Use stages to get a high-level view of pipeline health without losing the detail of individual states.
• Stages are especially useful in large teams or complex sales cycles with 10+ distinct states.
• Stage-level reporting enables sales managers to track conversion rates at a funnel level.

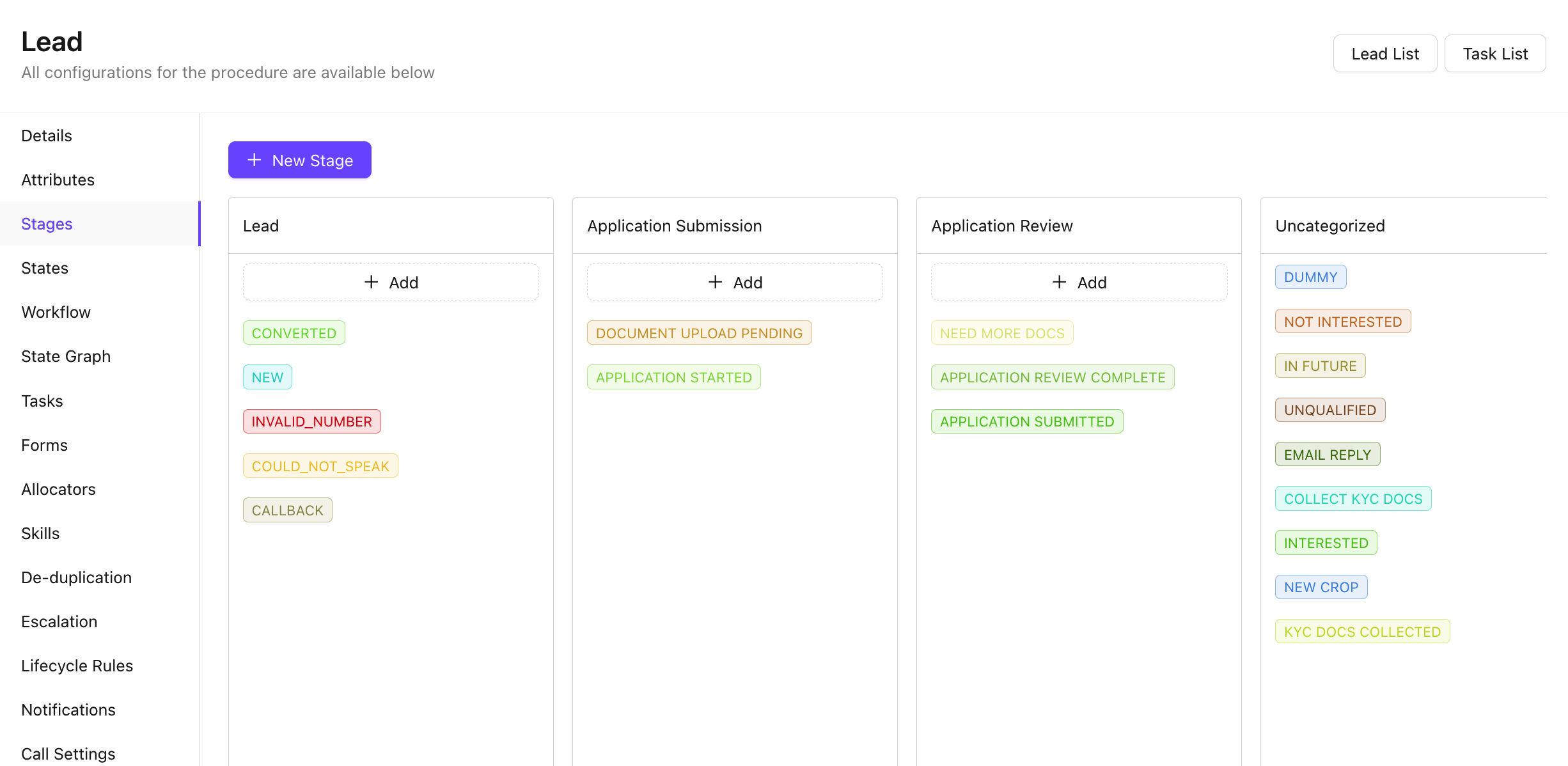

Manage Lead Stages

Create a New Stage

• Click on ➕ New Stage Button
• Add Stage Name, ShortId, Description
• Click on Submit

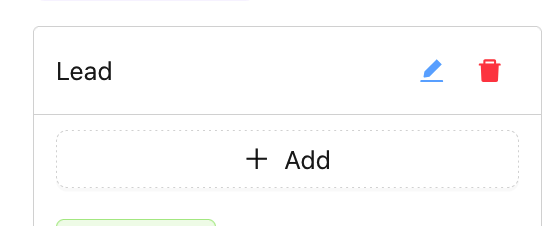

Edit a Lead Stage

• Click ✎ to edit lead stage name or description
• Use 🗑️ delete option to delete a stage
• Add a State (from list of unmapped states) in a Stage using the ➕ Add button

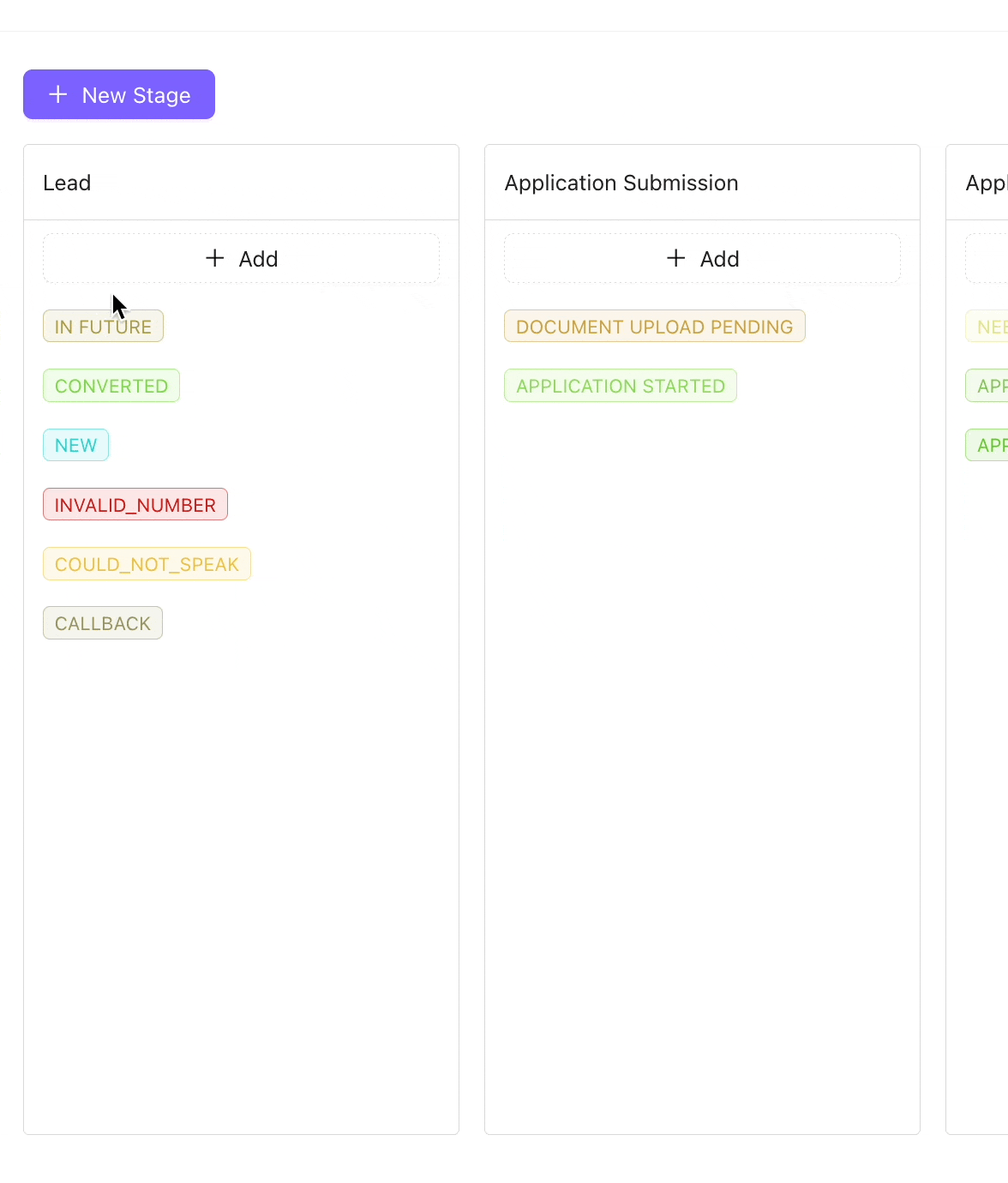

• Drag-and-drop a lead state from one Stage to another

4. States

Lead States are the most granular nodes of your sales workflow. Each state represents a specific step a lead can be in during the sales cycle.

• Define states such as New, Contacted, Qualified, Proposal Sent, Negotiation, Won, or Lost.
• Assign colors to states for quick visual identification in list and kanban views.
• Set terminal states (e.g., Won, Lost, Junk) to mark the end of the lifecycle for a lead.
• States feed into the State Graph and Workflow to define allowed transitions and automation triggers.

Manage Lead States

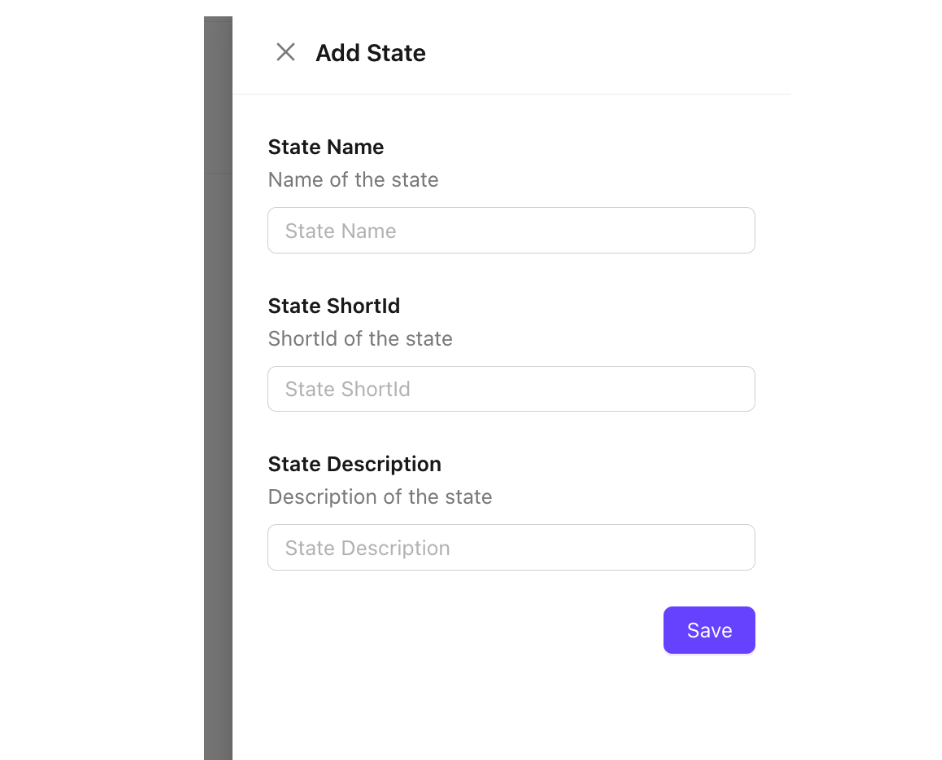

Create New State

• Click on Add State Button
• A new state configuration form drawer pop on the right-side
• Add the State Name, State ShortId, State Description

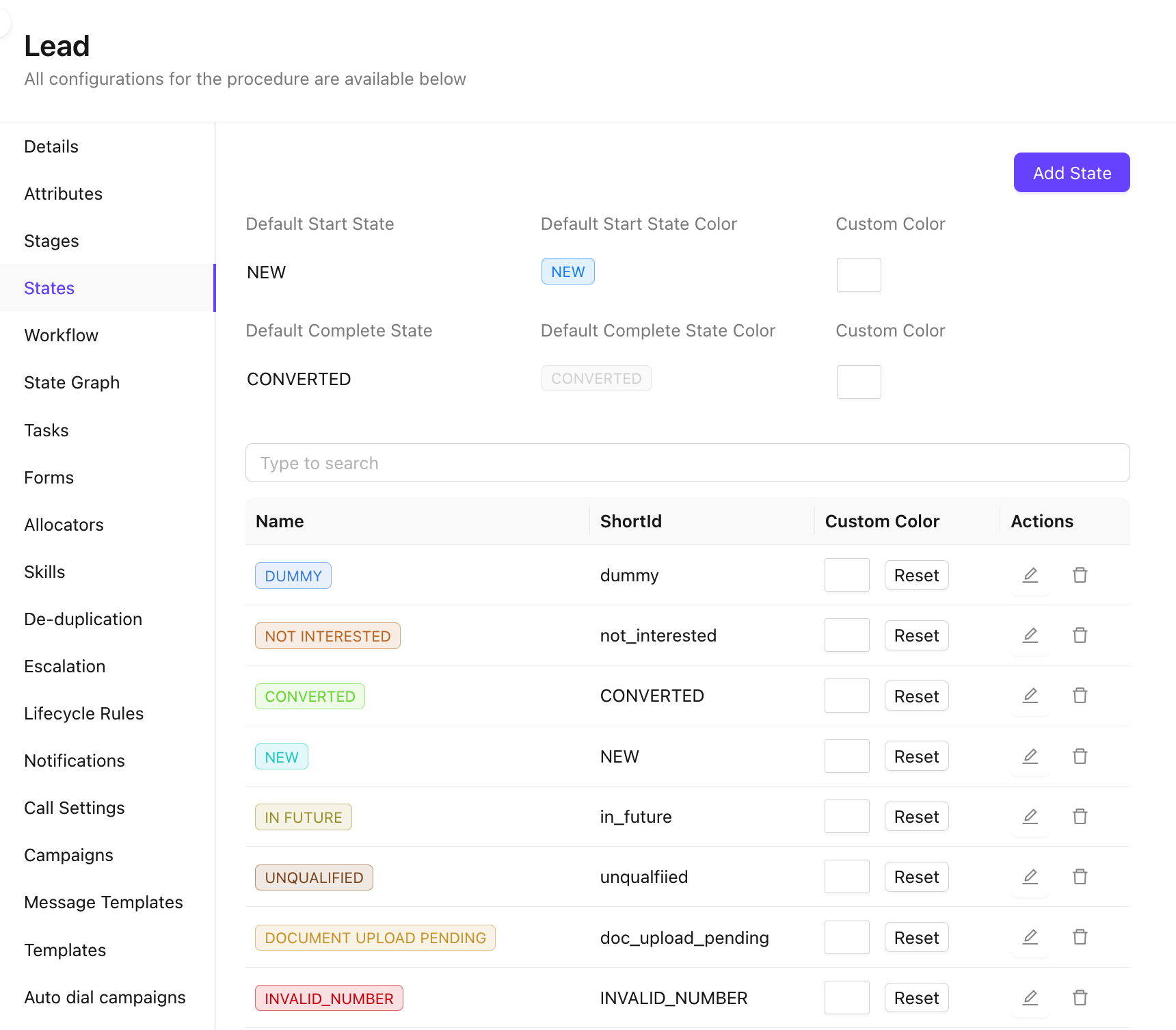

Edit Lead States

• Access the lead states from the state list
• Add Custom Color using the custom color button.
• Reset color using to default (green) using the Reset Button
• Using Action Button ✎ Edit or 🗑 Delete the State permanently

5. Workflow

The Workflow section defines the rules and logic that govern how leads move through your pipeline. It ties together states, tasks, and automation into a cohesive process.

• Configure allowed state transitions – define which states a lead can move to from any given state.
• Attach mandatory or optional tasks to specific state transitions to ensure process compliance.
• Set up entry and exit conditions for states, including field validations or approval requirements.
• Workflows provide the backbone for consistent, repeatable sales execution across the team.

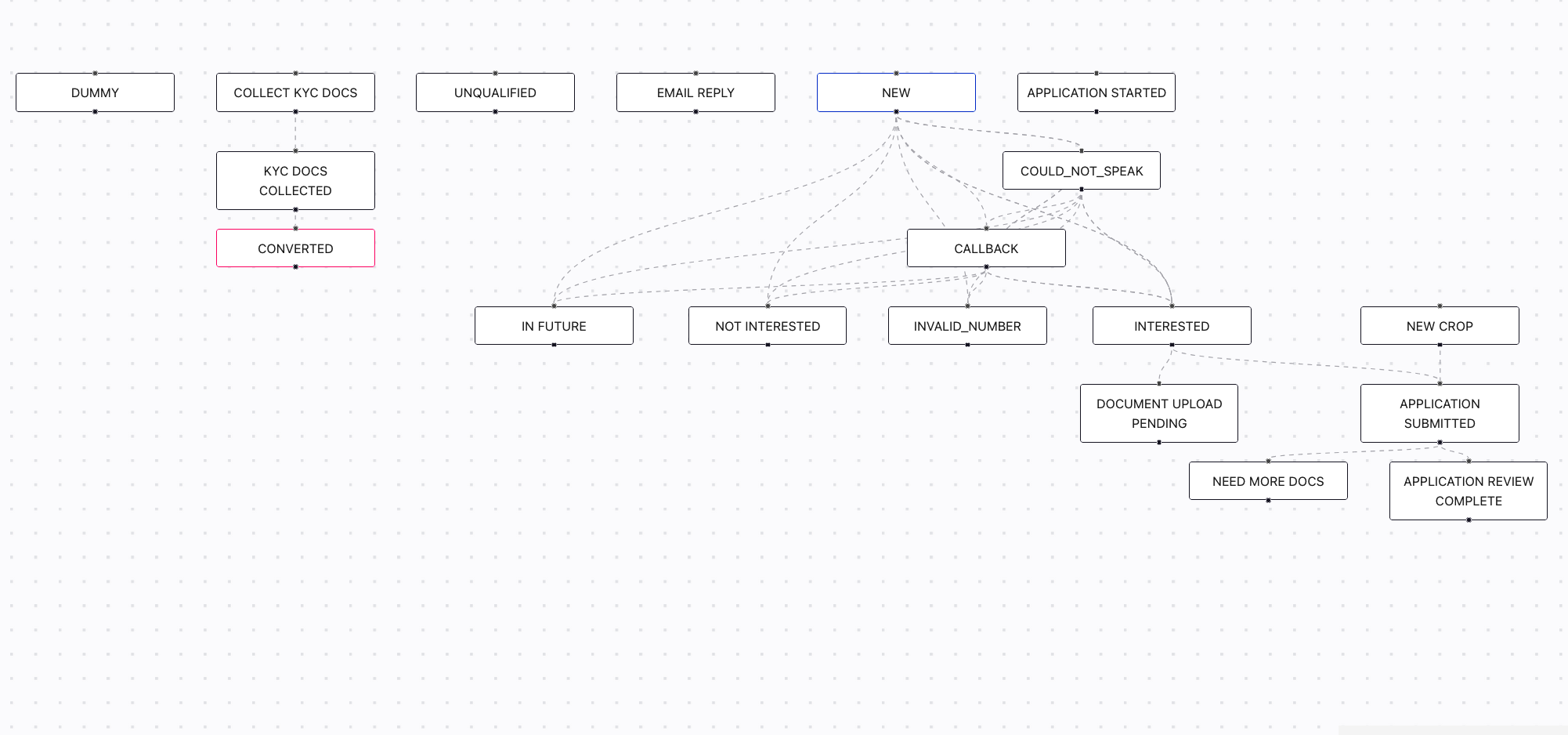

6. State Graph

The State Graph provides a visual representation of your entire lead sales workflow. It maps out the relationship between states, the allowed transitions between them, and how tasks are associated with each step.

• View all lead states and their permissible transition paths at a glance.
• Identify bottlenecks or missing transitions in your sales process.
• Understand how tasks are linked to state changes and what actions are triggered on movement.
• Use the graph as a diagnostic and communication tool when onboarding new team members.

7. Tasks

Tasks are actions or to-dos that need to be completed as part of the lead handling process. They can be tied to lead states or workflows to enforce structured follow-ups.

• Create task types (e.g., Follow-up Call, Send Proposal, Schedule Demo) for consistent activity tracking.
• Edit and delete existing tasks, and manage the complete task list configuration.
• Link tasks to specific lead states or workflow transitions to trigger them automatically.
• Track task completion status, due dates, and ownership from within the lead record.

Configure Tasks

Create a New Task

• Click on ➕ Add Task button
• Add the details in Task Creation Form
• • Task Title
  • Short Id
  • Task Attributes
  • States where this Task will be shown
  • Order

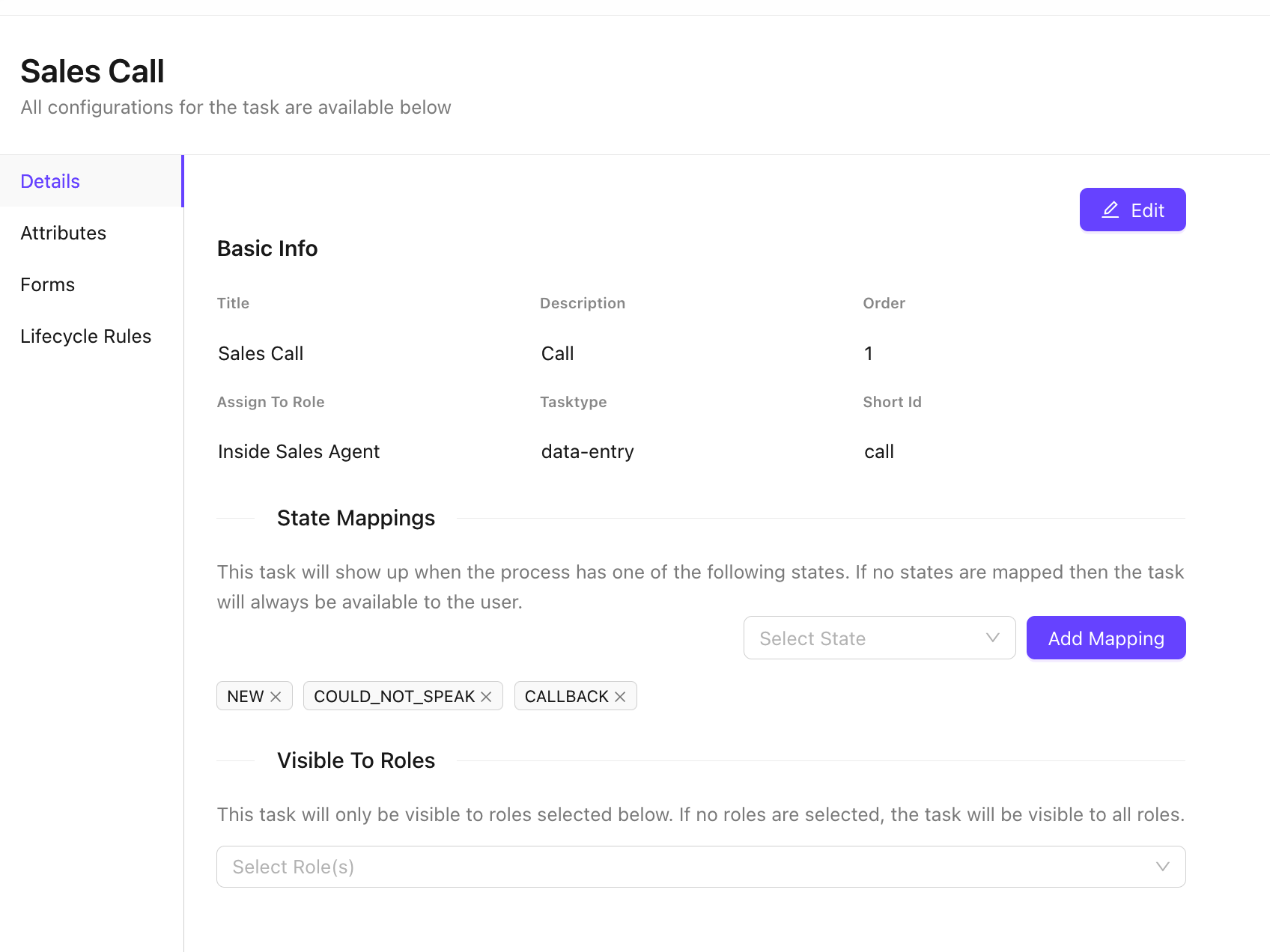

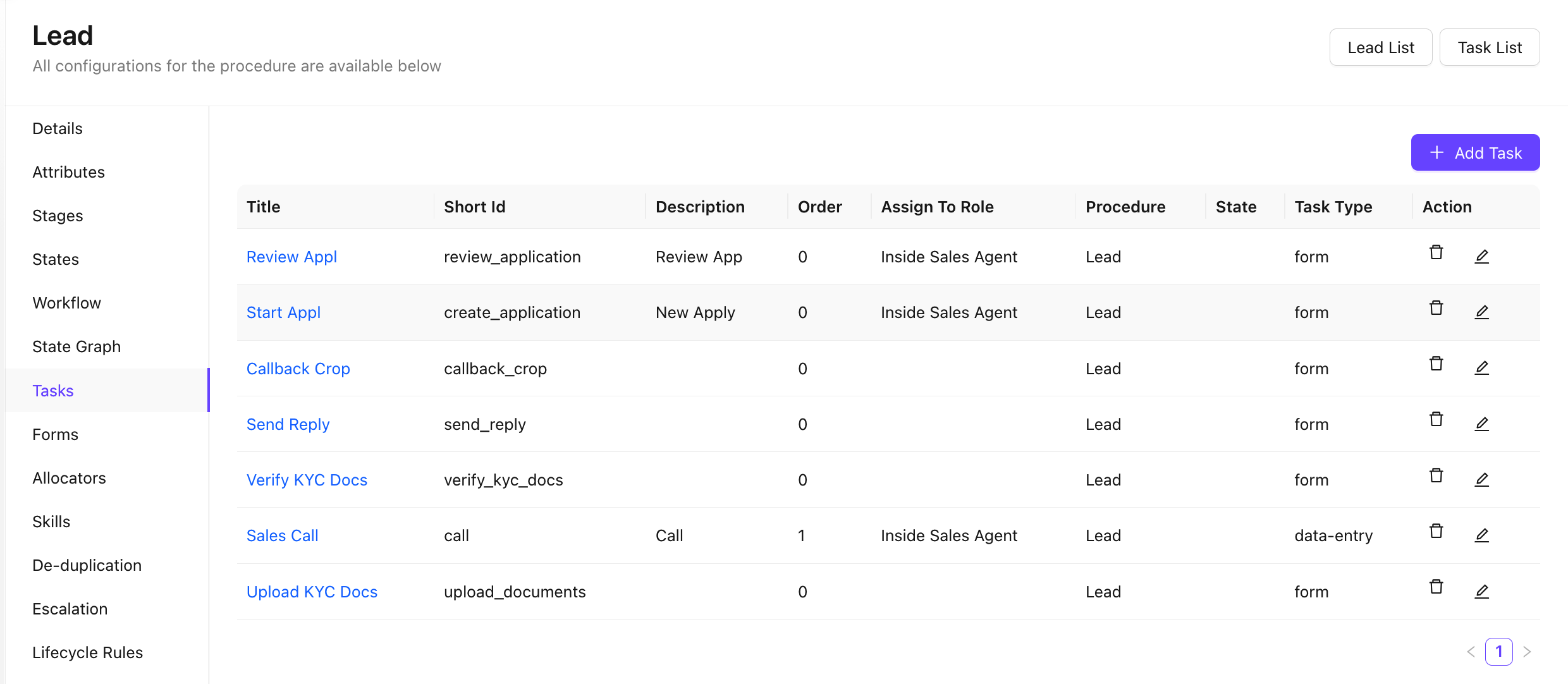

Manage Tasks

• Track the Tasks in the Task list
• To edit any task configuration, click on the Title of the relevant task row
• Configure tasks in Task configuration details
• • Details
  • Attributes
  • Forms
  • Lifecycle Rules

8. Forms

Forms allow you to capture lead information through structured, shareable data entry interfaces. These can be embedded on websites, shared publicly, or used internally for consistent data collection.

• By Default a Create and Update forms are added in the lead setup
• • Create Lead Form - This form is used to create new leads
  • Update Lead Form - This form is used to update existing leads
• Preview forms before publishing to verify layout and field configuration.
• Embed forms into external websites using a generated snippet.
• Make forms publicly accessible via a shareable link for inbound lead capture.
• Mark a form as the default form for new lead creation within the CRM.

9. Allocators

Allocators control how incoming leads are automatically assigned to sales representatives. This ensures fair distribution and intelligent routing based on defined rules.

Configuration options:

• Add single or multiple allocators to handle different lead pools or sources.
• Define lead filter criteria to determine which leads an allocator applies to.
• Set user filter criteria to target specific agents or teams for assignment.
• Manage load limits using Max Load settings to cap the number of leads per agent.
• Track assignment history per user for auditing and performance review.
• Manually allocate leads when auto-assignment needs to be overridden.
• Activate or deactivate allocators without deleting their configuration.

Assignment Strategies:

• Round Robin – distributes leads evenly across all eligible agents in sequence.
• Load Balanced – routes leads to the agent with the least current workload.
• Weighted Round Robin – assigns leads proportionally based on defined weights per agent.
• Fallback Strategy – a secondary assignment rule activated when the primary strategy cannot find an eligible agent.

10. Skills

The Skills feature enables intelligent lead routing based on a sales representative's expertise, product knowledge, or qualifications - going beyond simple round-robin or geographic assignment.

• Define skills relevant to your business (e.g., Enterprise Sales, Regional Language, Product Expertise).
• Assign one or more skills to each sales representative based on their capabilities.
• Tag incoming leads with required skills so the system matches them to the most qualified agent.
• Combine skills-based routing with load balancing to ensure both quality and efficiency in assignments.

Skill Feature Configuration

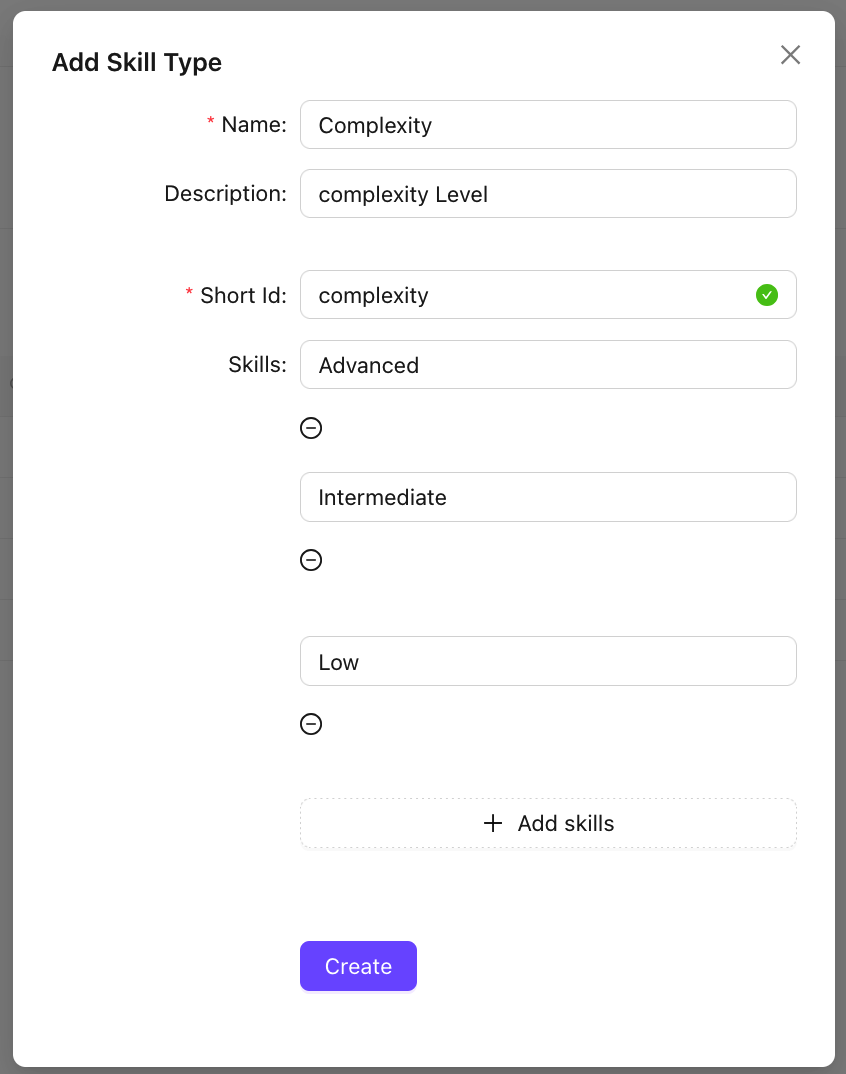

Add New SkillType

• Click on ⊕ Add SkillType
• Update the SkillType form with (Name, Description & ShortId)
• Add Skills

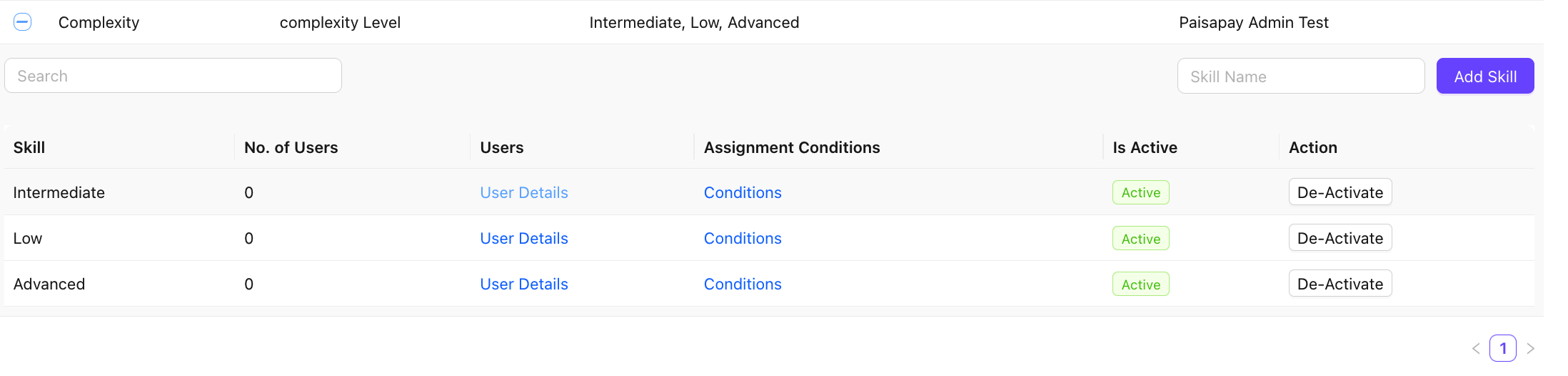

Configure SkillType

• Expand a SkillType to be updated using the +

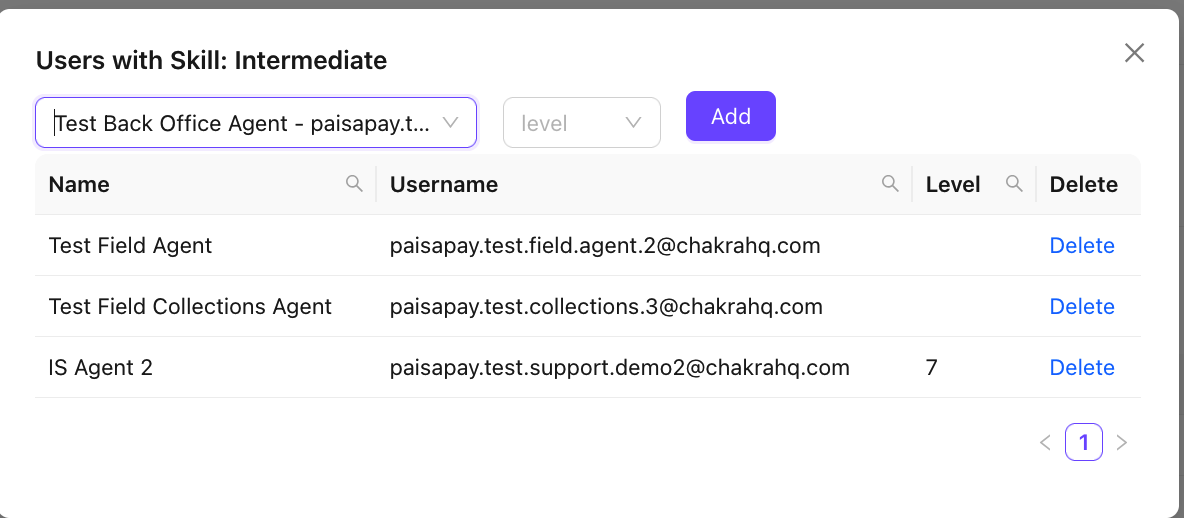

• Add Users to a Skill in the SkillType by clicking on User Details in Users column
• • Choose the new user(s) from the dropdown.
  • Add a Skill level [optional]
  • Click Add

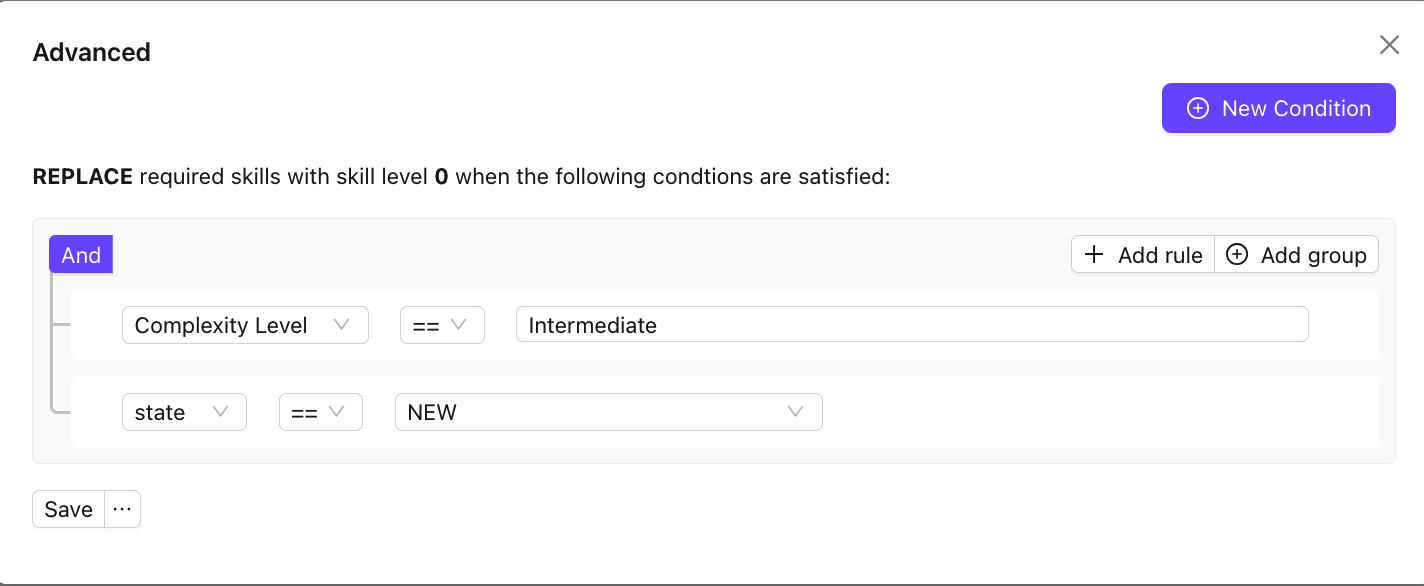

• Add Conditions for assignment
• • Click on Conditions in the Assignment Conditions column
  • Click on ⊕ New Condition
  • Add the Rules with conditions
  • • Choose the SkillTpye Field to be mapped to this skill

11. De-duplication

Lead de-duplication identifies and resolves duplicate lead records in the CRM, keeping your data clean and preventing multiple agents from working the same lead unknowingly.

• Define matching criteria (e.g., phone number, email, name combination) to detect duplicates.
• Choose to merge duplicate leads, retaining the most complete or most recent record.
• Set rules for what happens when a duplicate lead is submitted via a form or API - block, merge, or notify.
• Review a de-duplication log to audit resolved records and track data quality improvements.

Configure Deduplication Settings

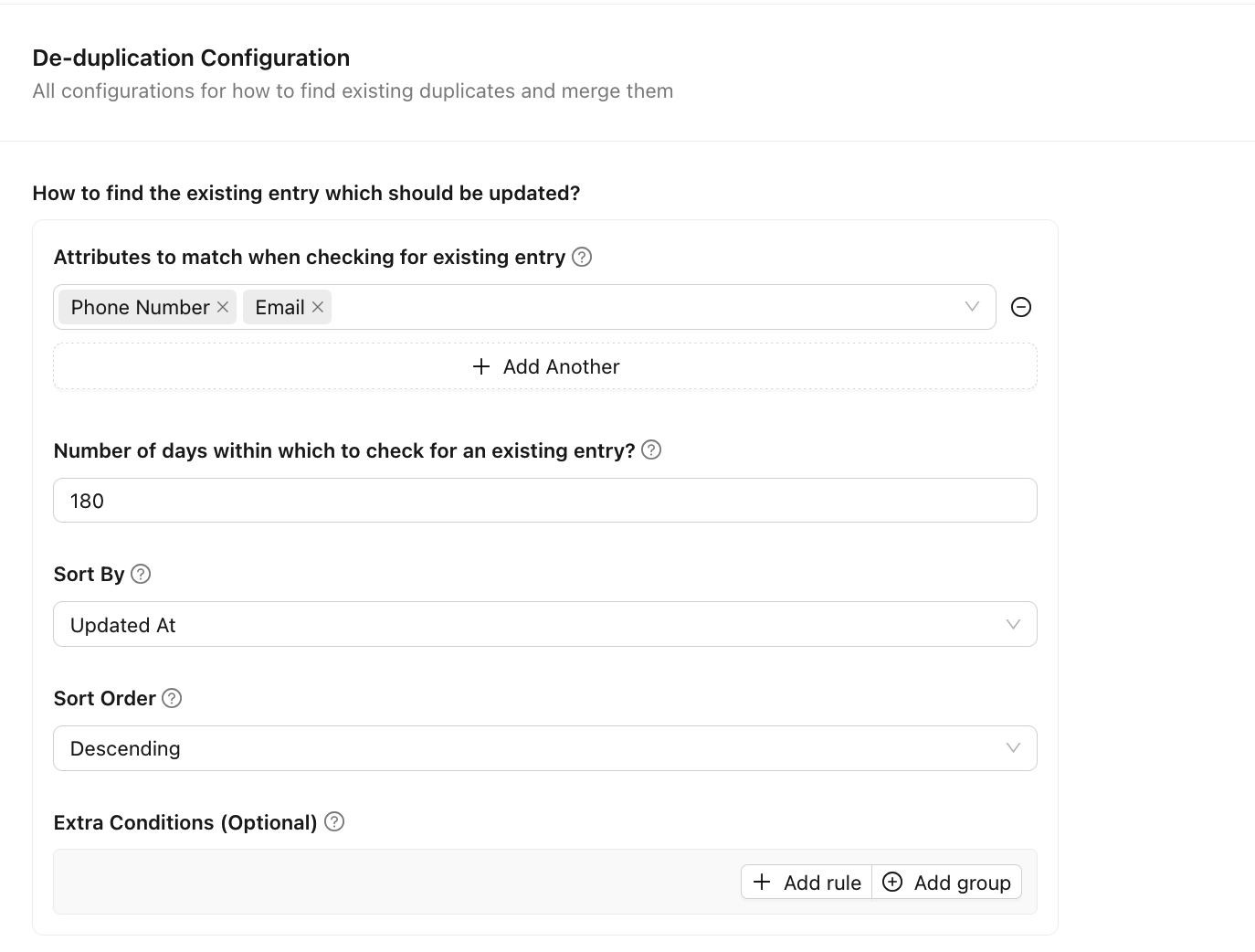

Configure Duplicate Lead Identify Conditions

• Attributes to match when checking for existing entry (An entry where all the listed attributes have the same value will be matched). Both And / OR conditions
• Number of days within which to check for an existing entry (The number of days within which to check for an existing entry)
• Sort By: If multiple entries match the unique attributes criteria, we pick the first entry after sorting.
• Sort Order: If multiple entries match the unique attributes criteria, we pick the first entry after sorting.
• Extra Conditions (Optional): Any extra condition added here will also need to be satisfied by the matching entry.

Configure Duplicate Lead Action Conditions

• Add Action(s)
• Order
• Type of check to assert that this action must be run (How to check if this action should be run?)
• The conditions to check (Optional)
• Type of the action (What type of action is this?)
• • Create a new entry
  • Update the existing entry
  • Update the existing entry and override all fields
• Action parameters (Parameters to use when running this action?)
• • Overrides
  • • Attributes override (Optional) (Which attributes should be copied from the new entry to the merged entry)
    • Status override (Optional)
    • State override (Optional)
    • Assignee override (Optional)
    • Booking override (Optional)

12. Escalation

Escalation Management ensures that leads which are stalled, unattended, or breaching SLAs are automatically flagged and routed to supervisors or alternate assignees.

• Set escalation triggers based on time elapsed in a state, inactivity period, or SLA breach.
• Define escalation paths – specify who the lead is escalated to and in what sequence.
• Configure escalation notifications to alert managers or team leads when a lead is escalated.
• Use escalation rules to enforce accountability and reduce drop-offs in the sales pipeline.

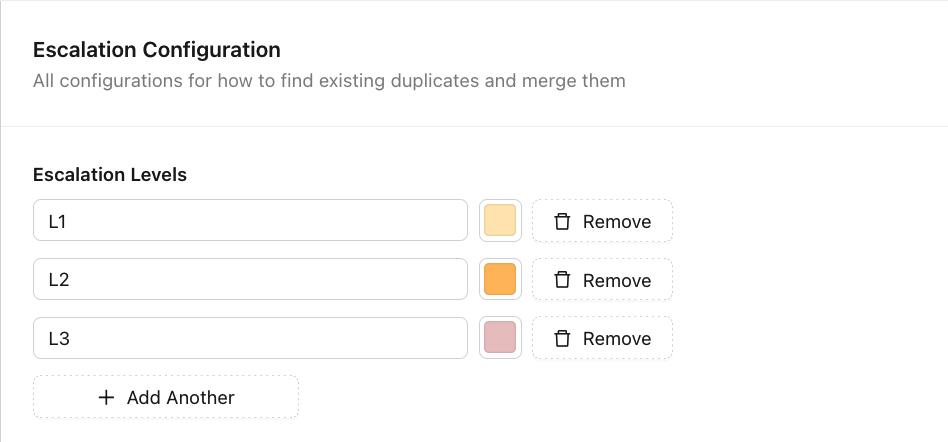

Add Escalation Levels

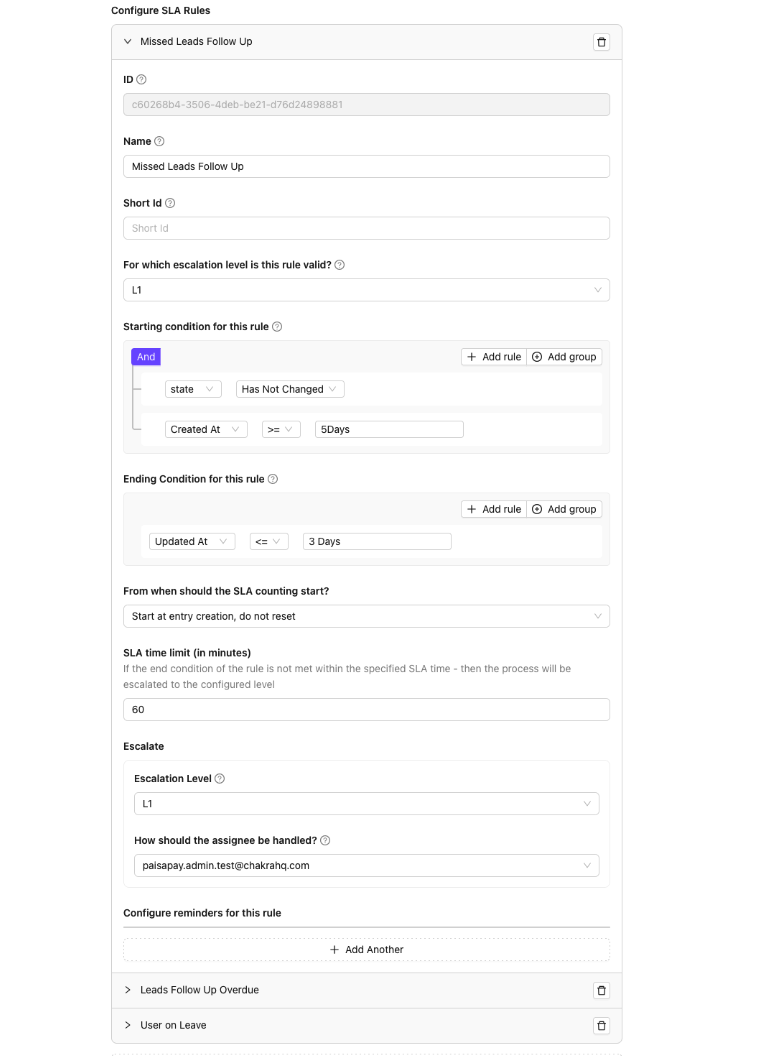

Configure SLA Rules

• Name (Provide a name for the rule)
• Short Id (Unique ShortId for the rule. eg: closure_sla)
• For which escalation level is this rule valid? (For which current escalation level is the rule valid?)
• Starting condition for this rule (Trigger this rule if the following conditions are met)
• Ending Condition for this rule (End this rule if the following conditions are met)

13. Lifecycle Rules

Lifecycle Rules allow you to automate actions on leads using a trigger–condition–action framework, reducing manual effort and ensuring consistent process execution.

• Triggers: Events that initiate the rule, such as lead creation, state change, field update, or time elapsed.
• Conditions: Filters that must be satisfied for the rule to execute (e.g., lead source = 'Web', assigned city = 'Mumbai').
• Actions: Automated outcomes such as changing lead state, sending a notification, assigning to a user, or updating a field.
• Chain multiple conditions and actions within a single rule for complex automation scenarios.
• Use lifecycle rules to automate nurture flows, re-engagement triggers, and SLA-based reminders.

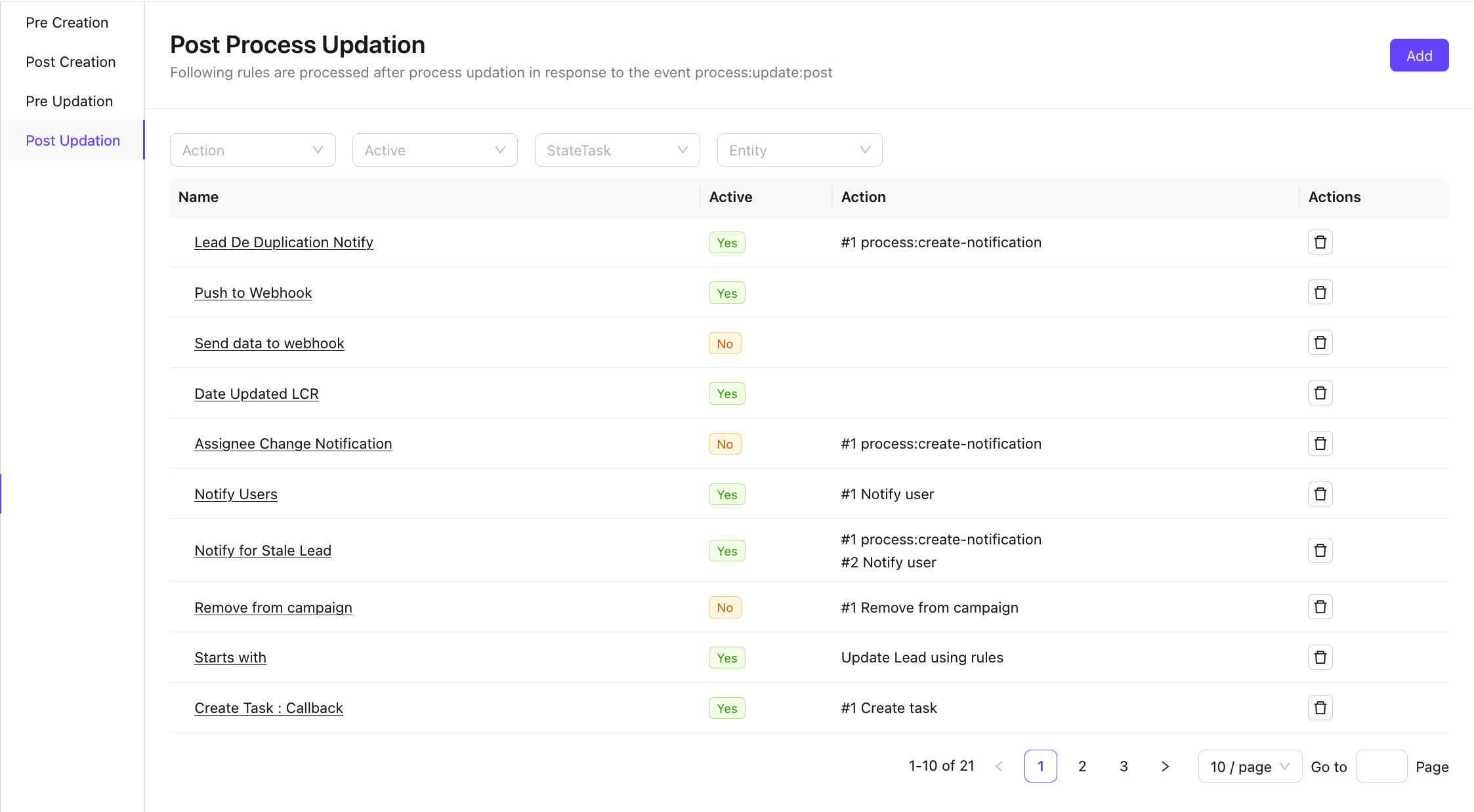

Configure Lifecycle Rules

Lifecycle Rule List

Type of Lifecycle Rules

• Pre Creation
• Post Creation
• Pre Updation
• Post Updation

Configure Lifecycle Rules Builder

• Trigger
• Trigger Conditions [optional]
• Action

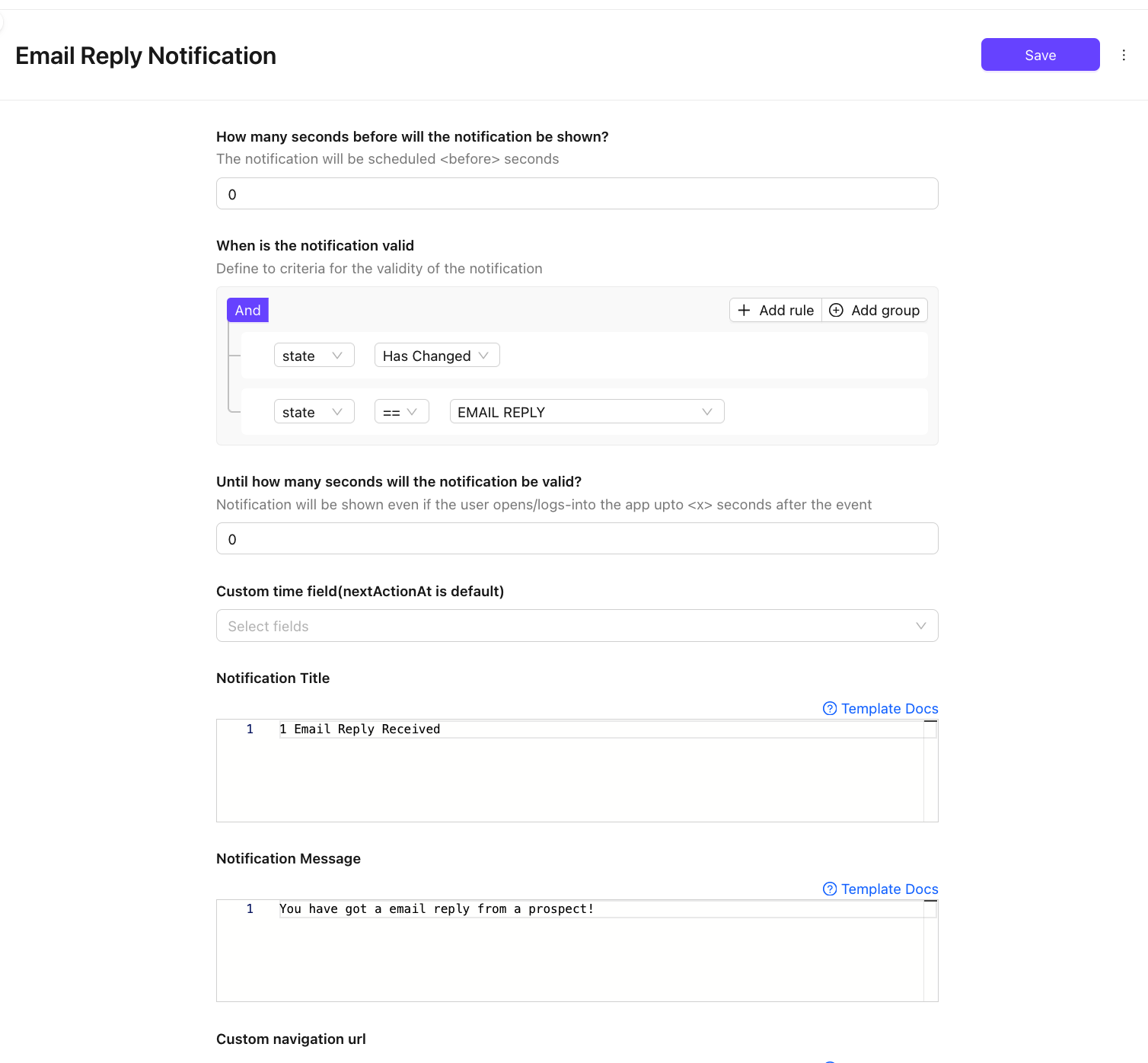

14. Notifications

Notifications keep your team informed of important lead events in real time. Custom notifications can be configured for specific actions, state changes, or updates within the lead lifecycle.

• Enable notifications for events such as lead assignment, state change, task due, or escalation.
• Target notifications to specific roles, teams, or individual users.
• Configure delivery channels – in-app alerts, email, or SMS depending on your integrations.

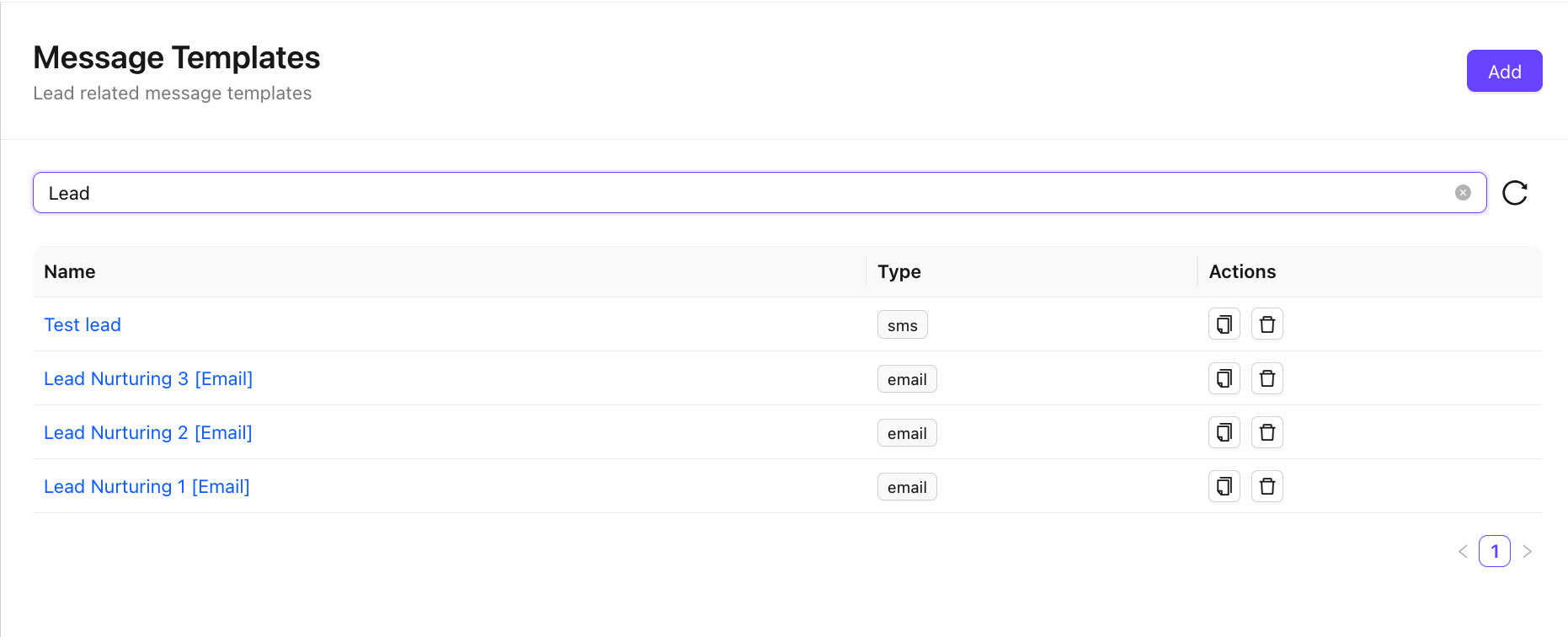

• Customize notification templates with dynamic placeholders for lead-specific information.

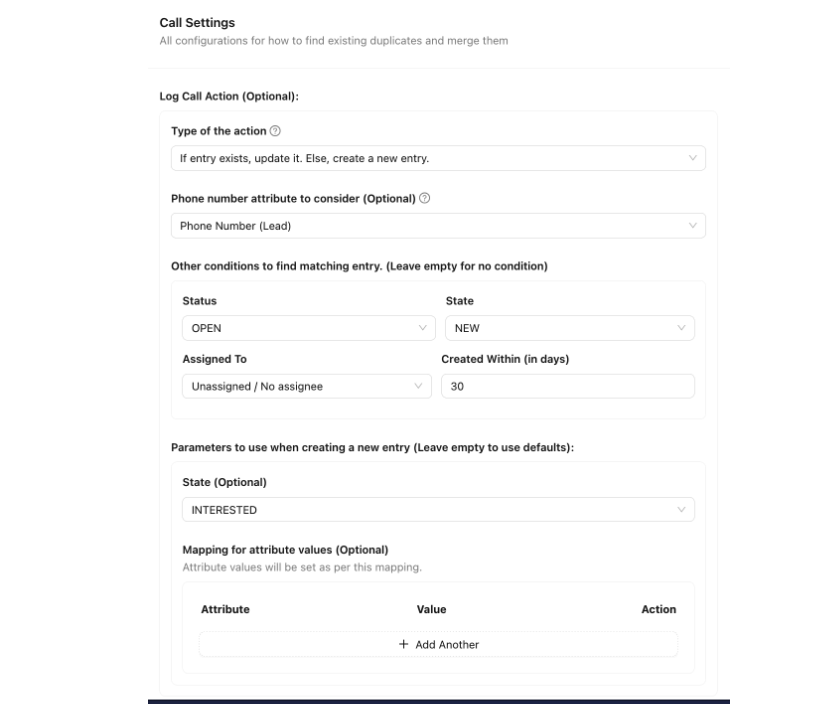

15. Call Settings

Call Settings integrate telephony capabilities directly into the lead management process, enabling click-to-call, call logging, and automated lead actions based on call outcomes.

• Configure integration with cloud telephony or VoIP providers.
• Set rules for automatic lead creation when a new inbound call is received from an unknown number.
• Enable call merging logic to associate calls from existing numbers with the correct lead record.
• Define post-call update rules – automatically update lead state or schedule follow-up tasks based on call disposition.
• Manage call recording settings and access permissions.

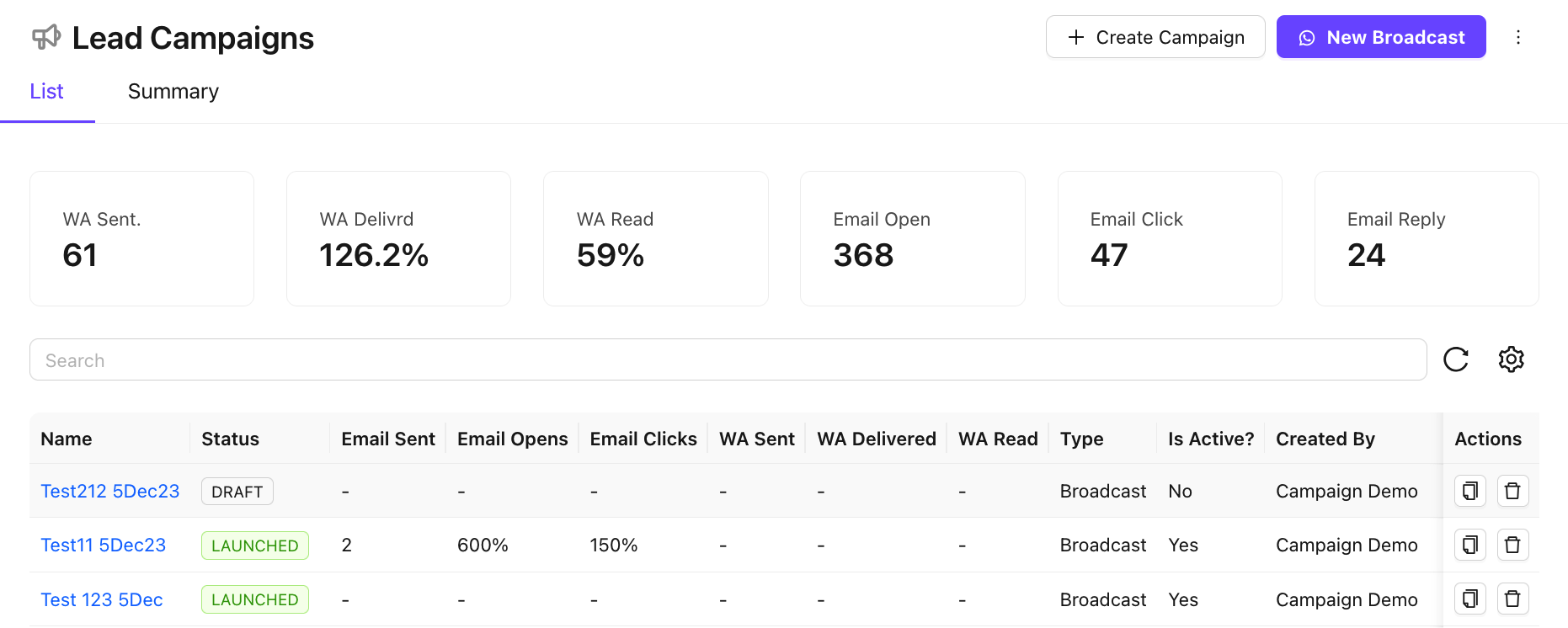

16. Campaigns

Campaigns allow you to run targeted marketing or re-engagement outreach to leads across SMS, Email, and WhatsApp channels - all linked directly to your lead data.

• View the Campaign Dashboard for a consolidated overview of all active and past campaigns.
• Create new campaigns as either Workflow campaigns (sequence-based, automated) or Broadcast campaigns (one-time, bulk sends).
• Set targeting criteria using lead attributes, state, stage, or custom filters.
• Monitor campaign performance through metrics including delivery rate, open rate, click rate, and response rate.
• Access detailed delivery reports at the individual lead level to track engagement.

Manage Campaigns

Create New Campaigns

• Click on + Create Campaigns
• Configure the Campaign

Manage Campaigns

• Search campaign using the Search Bar
• Use Campaign actions to Clone or Delete the campaign
• Track Campaign Metrics

17. Message Templates

Message Templates are pre-built content templates used within Campaigns and automated notifications. They ensure consistent messaging across channels and reduce the time needed to create outreach content.

• Create templates for SMS, Email, and WhatsApp channels.
• Use dynamic placeholders (e.g., {lead_name}, {assigned_agent}) to personalize messages at scale.
• Submit WhatsApp templates for approval in line with Meta's business messaging policies.
• Organize templates by channel, category, or campaign type for easy retrieval.

Manage Templates

Create New Template

• Click on Add
• Configure the Template
• Save the Template

Access Existing Templates

• Search for the template in the Search Bar
• Use Template actions to Clone or Delete the campaign

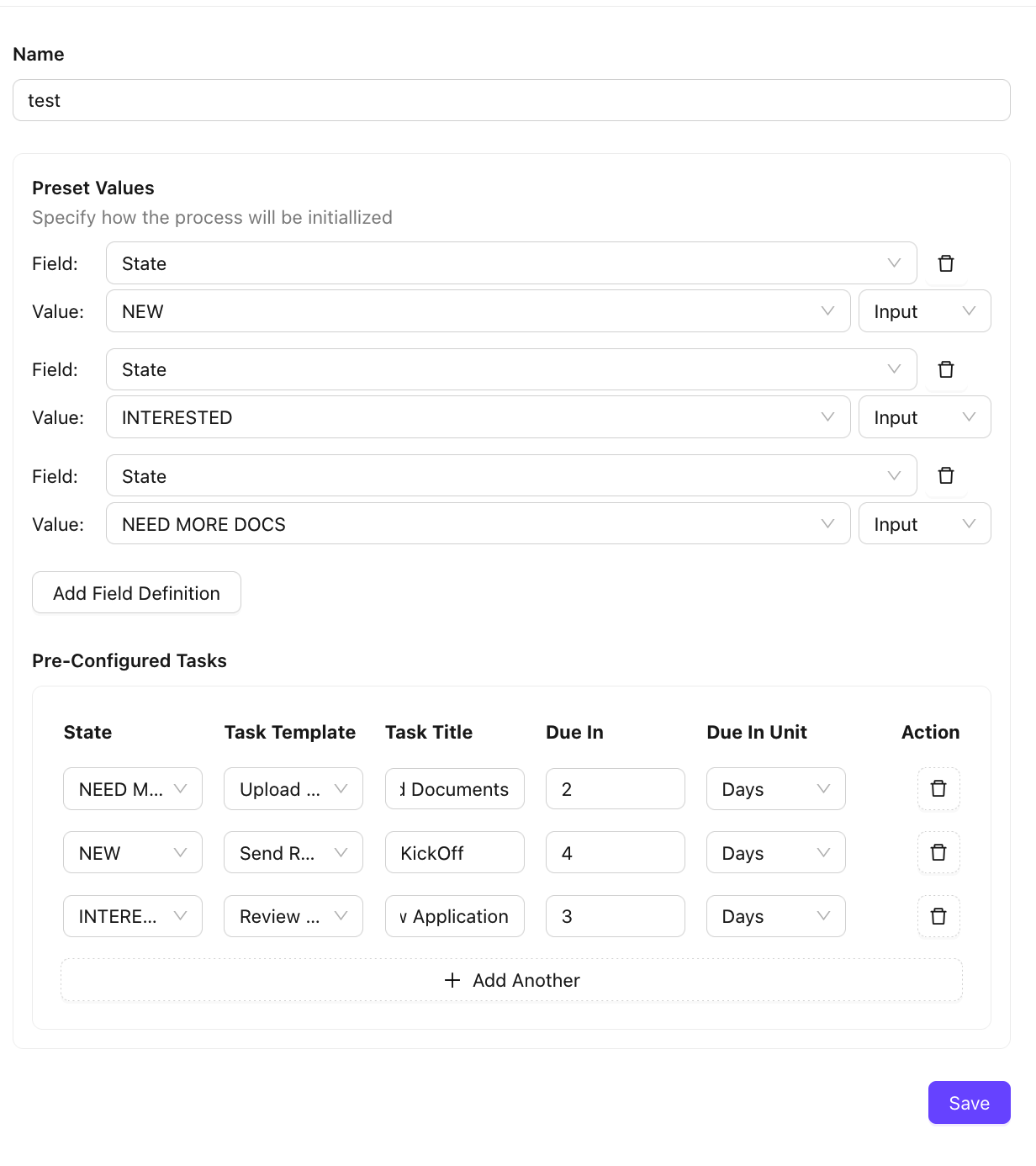

18. Templates (Project)

Project Templates allow you to define and associate structured project plans with leads. This is especially useful in sales processes that involve delivery or implementation after a deal is closed.

• Create reusable project templates with predefined tasks, milestones, and timelines.
• Associate a project template with a specific lead state to auto-initiate projects upon deal progression.
• Manage and update templates as your delivery process evolves.
• Provides a bridge between the sales pipeline and post-sale project execution.

19. Auto Dial Campaigns

Auto Dial Campaigns automate outbound calling to a defined list of leads using integrated cloud telephony or VoIP systems, enabling high-volume calling without manual dialing.

• Configure dialing campaigns with specific lead lists, time windows, and retry logic.
• Set the order and frequency of call attempts for unreachable leads.
• Integrate with your telephony provider to initiate calls and record outcomes automatically.
• Pause, resume, or stop campaigns without losing progress or lead state.
• Review campaign call logs and disposition summaries to measure outbound effectiveness.

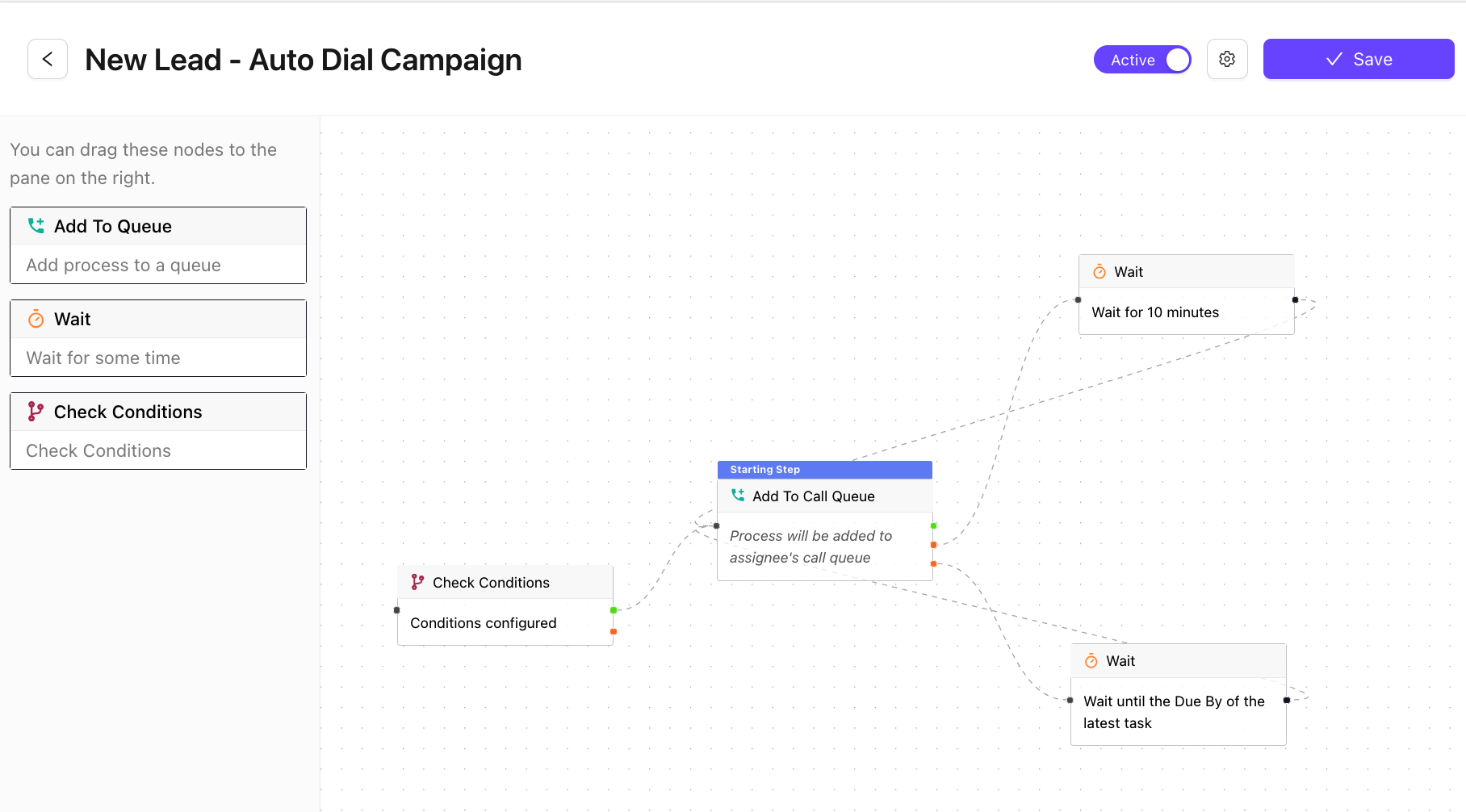

Configure Auto-dial Campaigns

Nodes

• Check Conditions ( To Qualify the Add the Queue)
• Add to Call Queue (Lead will be added to the Lead Assignee's Call queue )
• Wait (Add a wait time for non connected calls or no response from Assignee)

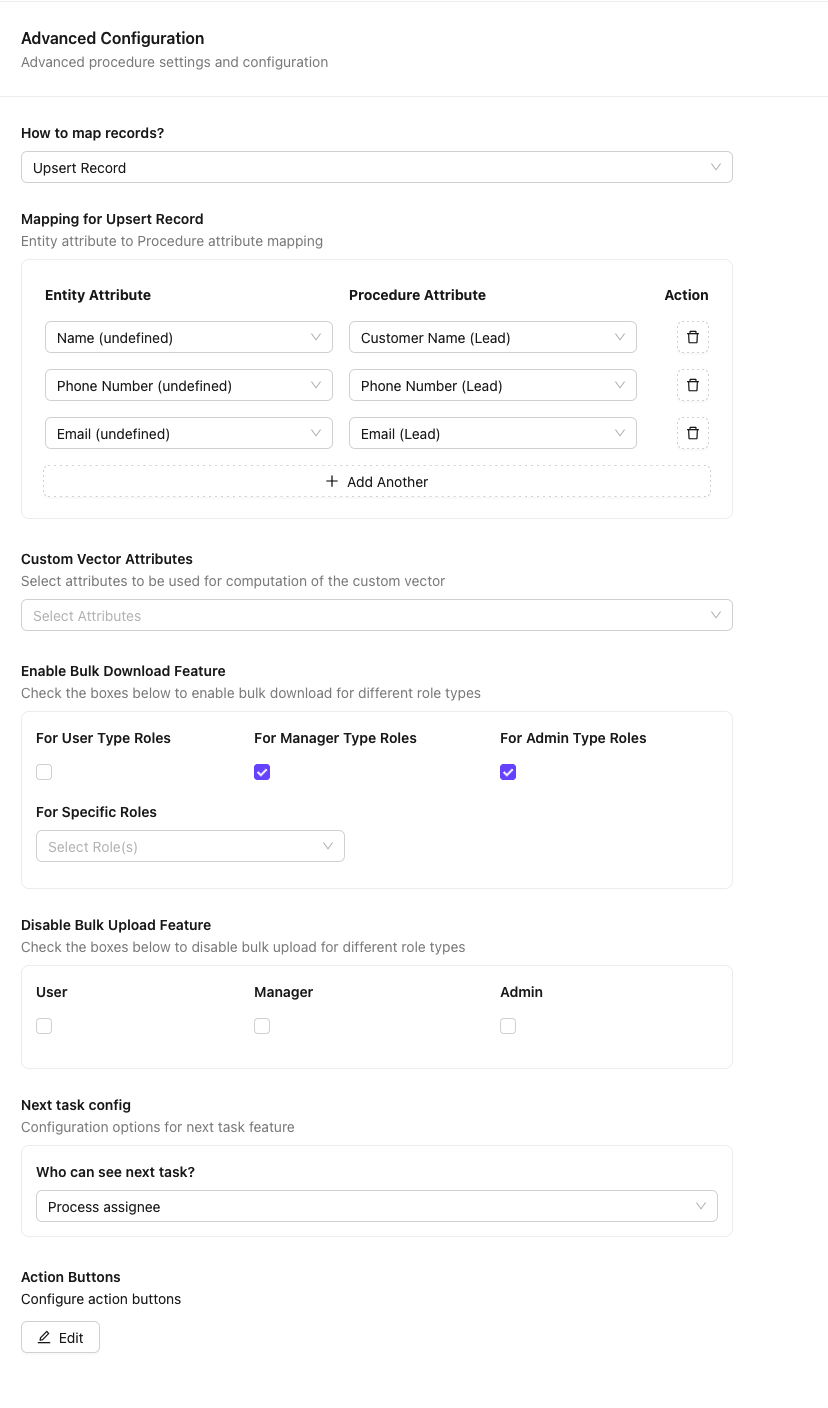

20. Advanced

The Advanced section consolidates high-level configuration options that govern lead records at a system level. These settings are typically managed by administrators and affect platform-wide behaviour.

• Configure record and entity-level settings to control lead data structure and visibility.
• Enable or disable high-level features such as lead merging, scoring, or external integrations.
• Set up bulk download options for lead data exports in CSV or Excel format.
• Manage task configuration at the lead level - including task display, ordering, and completion behaviour.
• Access developer and integration settings for API-based lead creation and updates.
